Product Details:
Payment & Shipping Terms:
|
| Technology: | Thermal Imaging Temperature | Style: | Temperature Helmet With Camera |
|---|---|---|---|
| Function: | Temperature Recognition Door Access Control | Material: | ABS |
| Operation System: | Android 7.1 | Size: | 280*140*220mm |
| Feature: | Non-Touch Temperature Recognition | Working Time: | Standby More Than 25h |
| Warranty: | 12months | ||
| High Light: | 8.1'' infrared food safety thermometer,Attendence ir camera temperature measurement |
||
Temperature Helmet Measuring Android System
4G Video Helmet With Camera
With our High-tech helmets, when anyone within range has a body temperature above normal, Sound and alarms on the helmet will be triggered.
The record of personal information and body temperature will be matched and saved automatically.

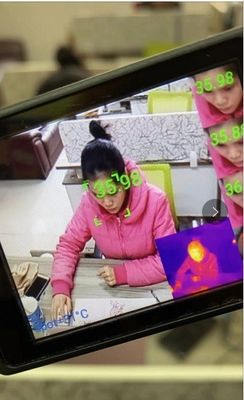

Body temperature readings of passersby can be seen on a display screen, can be remotely realtime monitored on PC, which can help the officers at backstage to give instruction and guidance to the frontline.
Using hand-held infrared ther mometers remains the primary monitoring method, which has to be done on a one-on-one basis, that was inconvenient for pedestrians and increased risks in epidemic prevention work.
|
Thermal imaging parameters
|
Uncooled infrared focal plane detection |
| Pixel 320X240 | |
| Viewing angle: 45-50 degrees 6.52mm f1.18 Minimum focal length: 0.5 meters | |
| Thermal sensitivity:0.1 degree | |
| Frame rate: 9Hz; wavelength range: 8-14um | |
| Measuring range: -10 +330 degrees | |
| Measurement accuracy:±0.5 degrees ( -10°C~330°C) | |
| Display :2.4 inches TFT | |
| System | Operation system:Android 7.1 |
| Processor:MTK6739 Quad-core ARM@Cortex-A53 MPCore | |
| Interface | Video interface:mipi |
| Data interface:USB2.0 micro | |
| Power interface:TYPEC | |
| Visible Optics Camera | Foucus range:0.5 Meters----Infinty |
| Angle of camera:140 ° | |
| Photo: 16MP JPEG format | |
| Other details | Distance of night vision:The human faces can be seen at 10 Meters in a totally black environment |
| Working time: standby more than 25h, camera work more than 5h | |
| Waterproof:IP66 | |
| Lithium battery :5000mAh | |
| Built-in one laser, accurate positioning camera target without deviation |
