Product Details:
Payment & Shipping Terms:
|
| Type: | Wireless Split Helmet With Camera | Operating System: | Android 7.0 |
|---|---|---|---|
| Chipest: | MTK6739 | Processor: | Quad-core ARM@Cortex-A53 |
| Sensor: | GC4603 | 4G 3G Net: | FDD/TDD/WCDMA |
| Night Version: | IR Cut 8-10 Meters | GPS: | Built In GPS Module |
| Storage: | Max Upto 128GB | Battery Lift: | Standby More Than 25hours |
| High Light: | Android7.0 Hard Hat Camera,MTK6739 Hard Hat Camera,250lumen 4G LTE Live Viewing Camera |
||

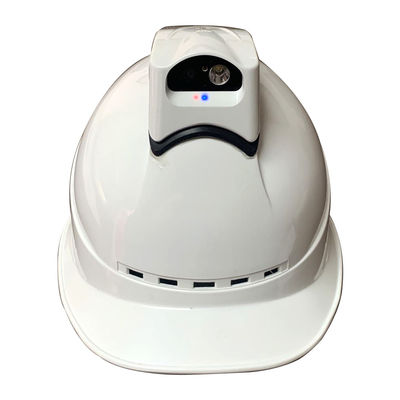

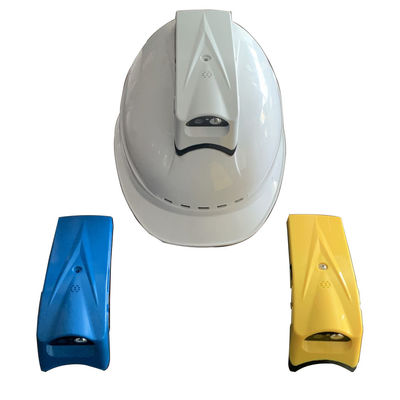

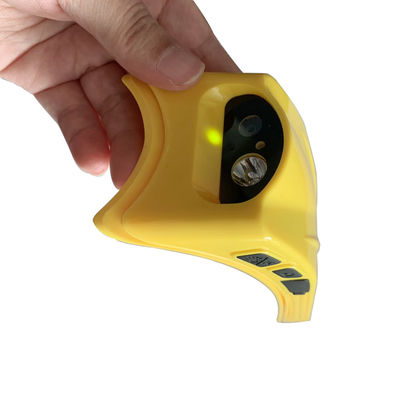

Smart Hard Hat Built in Camera for Construction Mining Support 4G LTE
Live Viewing
4G intelligent split camera with helmet adopts high-speed processor,integrated HD video,audio,3G/4G and WiFi wireless communication module, GPS storage and alarm module; it can timely record the scene, collect evidence and standardize construction. And through 3G/4G, WiFi wireless network for real-time audio, video and information transmission, voice intercom tec., and coordinated the back-end function of the monitoring and dispatching command platform, to achieve remote dispatching and command functions for outdoor mobile individuals. It can be widely used in electric power, railway, mining, petroleum, construction and other industries.
| 4G upload | 4G upload:Real time uploaded function | |
| Data of real time uploaded can be checked in the platform | ||
| Video | Video coding resolution | 1080P/720P MP4 Format |
| Video FPS | 1080P@30fps/720@30fps | |
| Video bit rate | 256kbps-8Mbps | |
| Wireless connected | WiFi | Support 802.11b/g protocol,2.4GHZ |
| 3G/4G Frequency band | TDD:B38 B39 B40 B41 FDD:B 1.2.3.5.8.4.7.28B | |
| GPS | Built-in Beidou global positioning module (support movement track query) | |
| Bluetooth | BT4.0 | |
| Other details | Weight | About 150g |
| Dimension | (L*W*H) 155*60*60mm | |
| LED indicator | With LED white light, it can be used for color video recording at night | |
| Working temperature | -30°C to +70°C | |
| Management software | Real time play | support real-time 160 way data |
| Beidou/GPS | Same Smarteye screen can check up to 256 camera position tracking | |
| Data upload | support D1 H.264 data upload | |
| Wireless intercom | Real time 4G network wireless intercom,Multi person meeting | |
| White light parameters | Voltage | 2.85-3.6V |
| Electric current | 350MA-1A | |
| Color temperature | 5000-10000K | |
| Luminous flux | MAX 250lumen(@1000mA) | |
