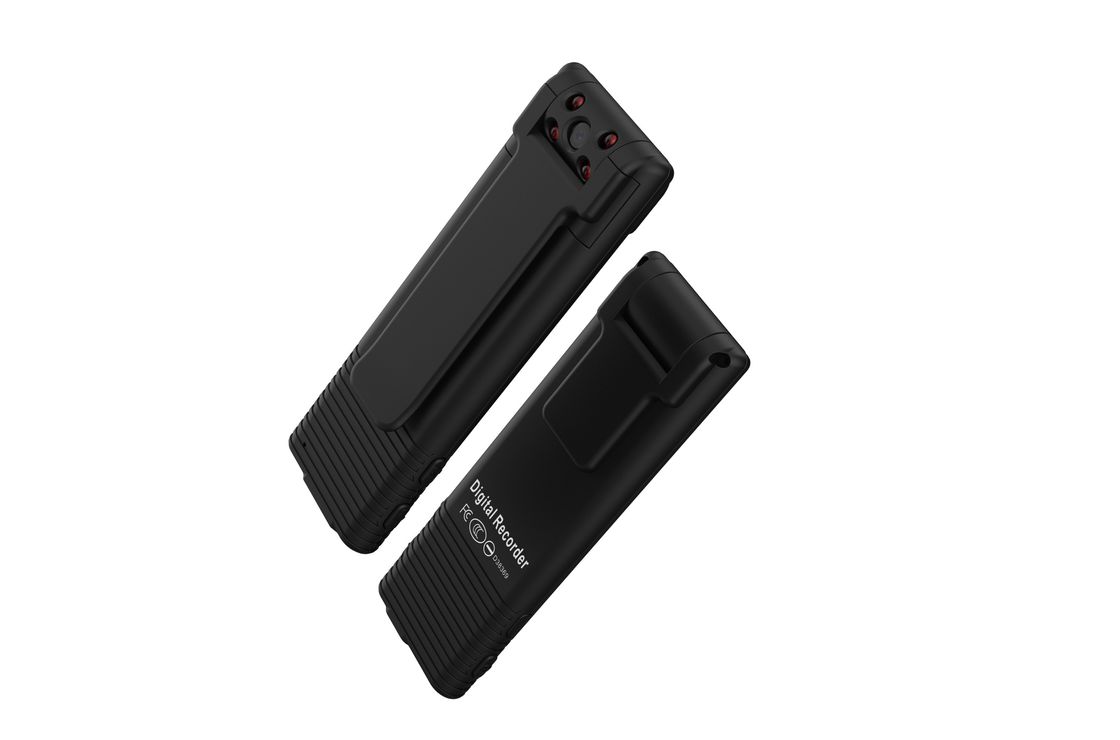

OTG Connection CMOS Sensor Police Worn Cameras AVI 256G 1080P

Function

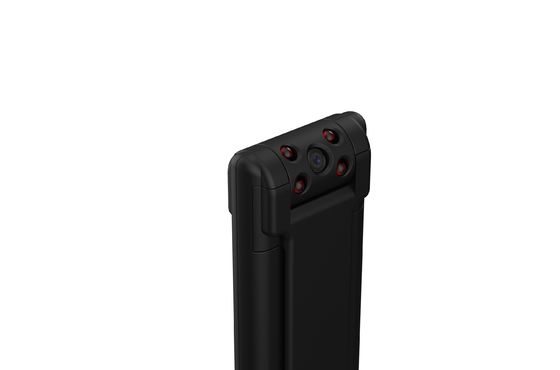

*.Lens 180 degree flip,180° infrared night vision lamp
*.One button recording；time watermark
*.0.8cm ultra-thin body
*.120°wide-angle camera
*. Built-in 1050mAh battery, 8 hours video recording,10 hours
   Sound recording
*. Video Resolution: 1920*1080P/1280*720P,Video Format:AVI
*.Storage type:TF card 8-256GB (recommend high-speed card)
*.Support OTG connection,can play at any time on thge mobile phone
*.Supporting system:Windows me/2000/xp/2003/vista/mac os,linux/win7/8,10

Parameters

Operation Guide

1. Power on: Press and hold the power button for three seconds, and the blue light will be on for three seconds to turn on and enter the standby mode.

2. Video: In the standby state, short press the "Power/Video button", the blue light flashes slowly 3 times and goes out to start recording. Then short press the "Power/Video button" to stop recording and save, and the blue light is on.

Note: In the video mode, short press any button except the power button, the blue indicator light flashes 3 times and goes out, you can know that the machine is in the video mode. If the indicator light does not flash, the machine has been shut down.

The video is automatically saved in segments, 5 minutes as one segment in cyclic mode, and 8 minutes as one segment in non-cyclic mode.

3. Recording: short press the "recording button", the green light flashes slowly 3 times and then goes out to start recording; short press the "recording button" again to stop recording and save, the blue light is on. Note: In the recording mode, short press any button except the recording button. The green indicator light flashes 3 times and goes out. You can know that the machine is in the recording mode. If the indicator light does not flash, the machine has been shut down.

The recording is automatically saved in sections, 60 minutes as one section.

4. Take a photo: In standby, short press the "photograph button", the blue light is off and the green light is on until the save is complete, then the green light is off and the blue light is on.

5.Motion detection: In the standby mode, long press the "photograph button" for 2 seconds to enter the motion detection mode to record. When the light change is detected, the machine will enter the recording state, and there will always be light changes, and the machine automatically every 2 minutes Save once, the blue indicator light will light up as a reminder, when there is no light change, it will return to the motion detection standby mode. At this time, long press the "photograph button" for 2 seconds to return to standby mode.

Note: In motion detection mode, except long press any button other than the camera button, the blue and green indicator light flashes 3 times and goes out. You can know that the machine is in motion detection standby mode. If the flashing does not flash, the machine has been shut down. . Motion detection saves a file in 2 minutes, and the indicator will flash once every time it is saved.

6.Turn on/off the infrared light: in the standby mode, long press the "recording button" for 2 seconds, the green light is on, and the infrared light is on. When entering infrared video standby, the infrared light is turned on first, and the infrared light cannot be turned on when it has entered the working state.

7. Reset: When the product does not respond, you can use the card pin to slam the reset hole and the machine can shut down and work normally.

8. PC camera: When the memory card is not inserted, it can be used as a PC camera when connected to a computer.

9. In standby mode, it will automatically shut down without any operation for 5 minutes

10. When the power is low, the blue and green lights flash alternately, each flashing 10 times, and then shut down.

11.When there is no card, the blue and green lights flash 5 times at the same time, and then shut down.

12. If you use OTG to connect to mobile phones, TVs, tablets and other devices to connect to playback, there is a message that the memory card is damaged and cannot be recognized. When you need to format the memory card, you can connect to the computer for playback. Because there are many mobile phone systems, it may be formatted by the machine. It will cause the phone to fail to recognize the memory card, but the files are still stored on the memory card normally. Please refer to the computer at this time. Please use the data cable to connect the computer to play back the files.
