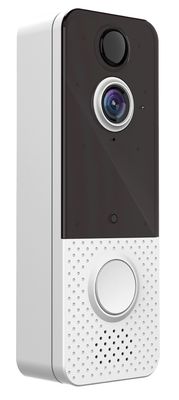

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera

China Shenzhen Ouxiang Electronic Co., Ltd. certification
China Shenzhen Ouxiang Electronic Co., Ltd. certification
OUXIANG is very professional and fast service,Have very strong, ODM development capabilities, fast delivery orders, trustworthy company,No complaints. Thank you!

—— Mazi from Canada

OUXIANG is a very strong R & D capability, I have found more than 10 factories can not do, they successfully completed my project, very good, thanks

—— Keith From USA

The quality and service are good, delivery time is punctual every tim, 24 hours at any time to contact, order delivery, ouxiang trustworthy company

—— Oscar from Sweden

I'm Online Chat Now

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera
0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera

Large Image :  0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera

Product Details:
Place of Origin: china
Brand Name: oxiang
Certification: CE FCC ROHS
Model Number: OX-WD7
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: neutral
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15000
Detailed Product Description
Storage: 64Mb Flash Chip(CPU): Ingenic T31ZL
Video Format: MP4(H.264) Video Size/Frame Rate: 1080P/20fps
Chime: Support RF 433MHZ Chime WIFI Connection: Support 2.4GHz Wifi (802.11 B/g/n)
Highlight:

0.8Lux Wifi Home Security Camera

,

GC2053 CMOS Wifi Home Security Camera

,

2600mAH Night Vision Wifi Camera

Specifications
Chip(CPU) Ingenic T31ZL
Storage 64Mb flash
Sensor 1080p GC2053 CMOS sensor
Lens 120°wide-angle lens
Sensor Capability Support automatic white balance, automatic gain control, automatic backlight compensation
Signal to Noise Ratio ≥39dB
Minimum Illumination 0.8Lux/F1.4(color mode),0.3Lux/F1.4(black and white mode)
Night Vision double filter automatic switching
6pcs 850nmΦ28Mil high power infrared lights
Night Vison Distance The best effect is 3 meters; the farthest night vision distance is 20 meters.
Motion Detection PIR motion detection:
The motion detection distance is adjustable (it will be trigered immediately within the effective distance);
The best motion effect is 2 meters, and the farthest distance is 4 meters. (The results might be affected by temperature and light)
Video Format MP4(H.264)
Video Size/Frame Rate 1080P/20fps
When to Record 1. Record when there is motion detection
2. Record when someone ring the doorbell
3. Record manually from APP
Video Duration 1. When motion detection is activated or when someone rings the doorbell, the doorbell will record a 15 seconds video, and then enter sleep mode automatically.
When in the sleep mode, activate the motion detection or ring the doorbell, the doorbell will record another 15 seconds video.
2. Each time when you get to live view, the doorbell will record a video. The video duration is limited to 3 minutes. It will stop recording after 3 minutes. "
Battery type/capacity 18650 battery cell 2600mAH*2=5200mAH
Battery discharge time 2pcs 18650 batteries can standby for 2 months.
If it needs to record 30 of 15-second video each day, it can last for 45 days.
Network Protocol TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P
WIFI connection support 2.4GHz wifi (802.11 b/g/n)
Chime support RF 433MHZ chime
Storage 1. Support cloud storage service (doesn't have SD card storage function).
2. There is 7 days rolling cloud storage service for free, and the service is valid for 90 days. Afther 90 days, cloud storage service needs to be paid.
Working voltage 3.7V 18650 Li-ion battery
Working current Starting current 260mA, sleep mode standby current 1.7mA
USB Charging Voltage DC 5V / 1.5A
Storage temperature(°C) (0℃~50°C)
Operating temperature(°C) ( -10~70°C)
Operating humidity <95%
Wake-up methods 1. Wake-up by ringing the doorbell
2. Wake-up by PIR motion detection
3. Wake-up by APP live preview
Account Total 9 users/accounts can be connected to same device: 1 main account + 8 shared accounts.
It support up to 3 users to get to live view at the same time, but only 1 user can do the live view at one time.
Application/Use When there is visitors, the doorbell can record short videos, do two-way talk, and the house owner can see online what is happening outside the door.
Features Wireless installation; ultra-low power consumption; long distance active wake-up; support multiple users view online at the same time

 0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 0

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 1

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 2

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 3

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 4

0.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 50.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 60.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 70.8Lux GC2053 CMOS Wifi Home Security Camera 2600mAH Night Vision Wifi Camera 8
