Product Details:
|
| Humidity Range: | 20--80% RH | Night Vision Distance: | 2—3 Meter |
|---|---|---|---|
| Total Harmonic Distortion: | <5.0% | Charging Current: | 120-280MA |
| Intercom: | Two Ways | Frame Rate: | 15-25 Rate |
| High Light: | 3.5Inch Screen Wireless Baby Monitor,1300MAH Wireless Baby Monitor,Intercom Wireless Baby Monitor With Screen |
||

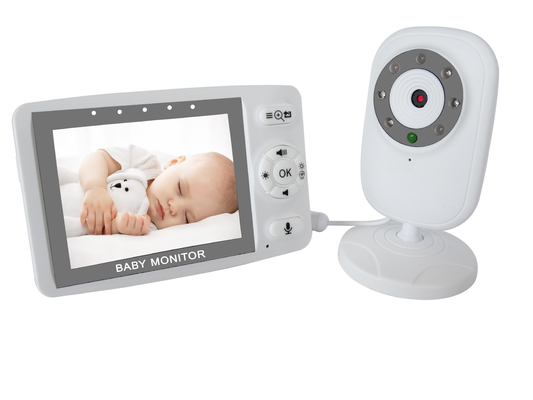

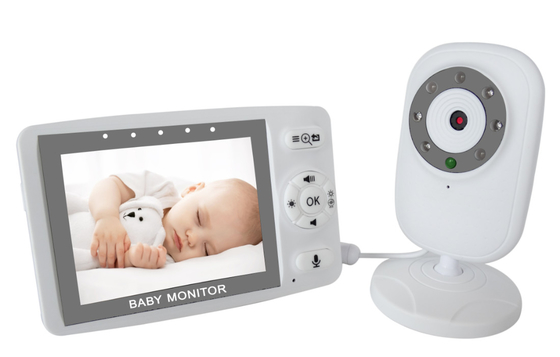

HD 2-Way intercom With 3.5 Inch Display Screen Baby Monitor Night Vision
Parameters
| LCD receiving voltage | DC:5V/1000MA；Battery:built-in 3.6V/1300MAH Li-Battery |
| Transmission frequency | 2.4GHz ISM Band |
| Wireless working mode | FHSS |
| Transmission power | 19dBm@CW mode |
| Transmission rate | 3Mbps |
| Transmission distance | 200-300 meter in open area |
| Working current | TX:400mA MAX,RX:500mA MAX,standby: 200MA |
| Features | Descriptions |
| Frame rate | 15-25 Rate |
|
Signal strength indicator |
4 levels |
| Volume control | 10levels |
| Intercom | Two ways |
| Voice control | There is a sound that automatically turns on the screen, and the receiver has an alarm tone. |
| One receiver Muti- transmitter | Can receive one transmitter with four transmitters, can switch display |
| LCD Size | 3.5" 320*240 RGB color LCD |
| Transmission security | Need to be pair coding |
| Charging current | 120-280MA |
| Audio sampling rate | 16K |
| Audio frequency response range | 120Hz~3KHz |
| Voice control level | 35--50dB@ MIC Input |
| Camera resolution | 0.3 Mega pixels |
| Image Resolution | 320*240QVGA |
| Video transmission rate | 15-25FPS |
| Total harmonic distortion | <5.0% |
| Signal to noise ratio | 46dB |
| Receiving sensitivity | -96dBm@BER=1e-3 |
| Night vision distance | 2—3 meter |
| Humidity range | 20--80% RH |
| Temperature range | 0℃--45℃ |
Main Functions
● Long-distance transmission: the transmission distance of the open area can reach 150-200m.
● Clear night vision function: 24-hour monitoring.
● Transmission with 2.4GHz frequency, meet with FCC and CE standards.
● 1 receiver can connect 4 transmitters.
● Half-duplex voice transmission: clear sound quality.
● With VOX (sound control) wake-up function, the volume of the Baby end exceeds a certain value will trigger the LCD receiver to work (the sound will be bright after the screen is automatically turned off), reminding parents to check the baby status.

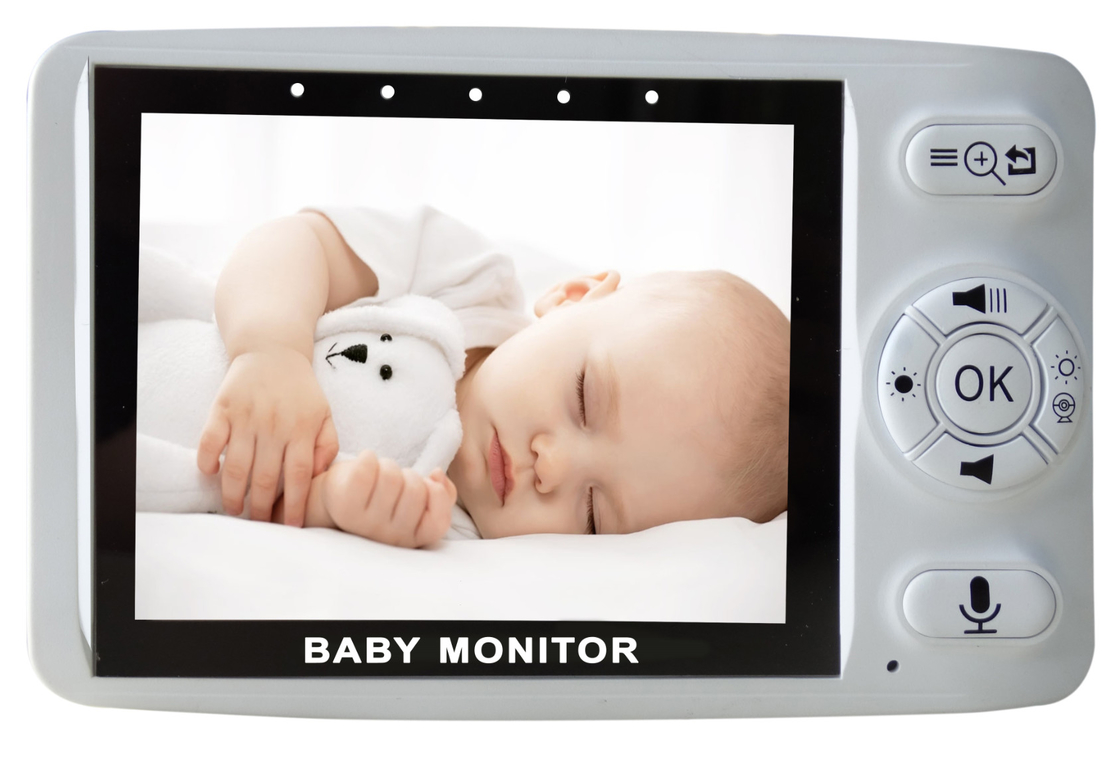

● High definition with 3.5 inch display screen.
● Operation menu display.
●The receiver is powered by a lithium battery, which is convenient for mobile use.
●With code function to improve security and privacy.
●Support to play music .
Common faults and solutions:
1: when the camera and receiver are close, there is a howling
A: This phenomenon is caused by the acoustic feedback. The audio signal picked up by the microphone is picked up by the microphone after the received horn sounds. It is superimposed with the sound at the camera and then transmitted. The receiving end will emit a louder sound than before. Thus, the self-excited oscillation is formed and the whistling sound is generated. The adjustable small speaker volume or the receiver is far away from the camera.
2: No response
A: Check if the battery is out of power. Plug in the external power supply to see if it can turn on normally. Is the charging LED light?
3: received music too loudly
Turn off the volume received by the LCD or turn off the LCD volume.
