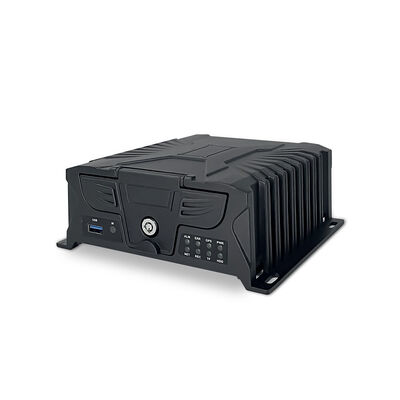

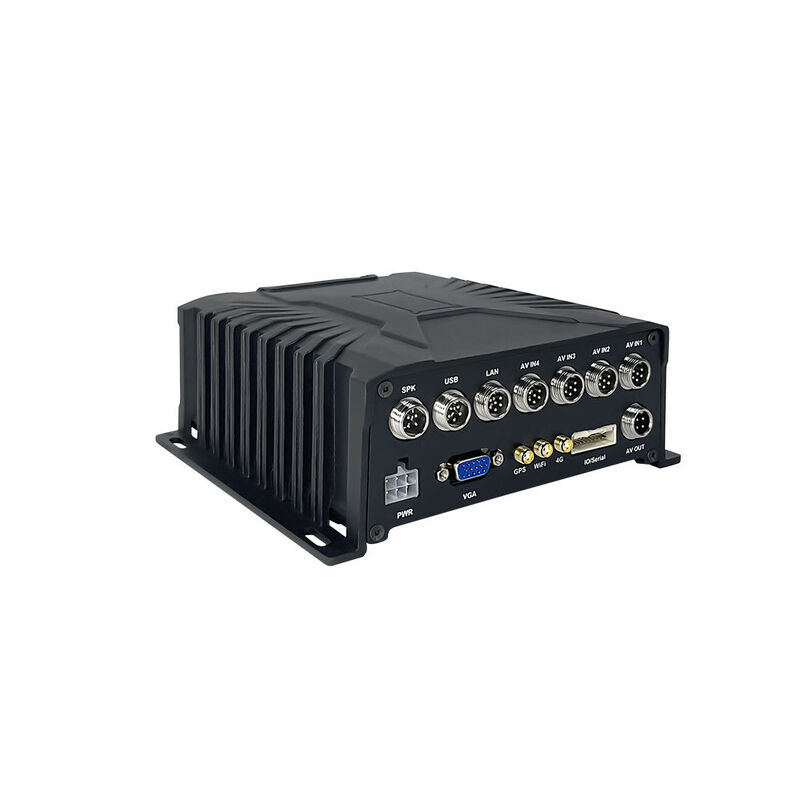

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | MD264 |
|
Detail Information |
|||
| Network: | 2.4GHz WiFi (IEEE 802.11 B/g/n) | Red LED Blink: | Power OK, Waiting For WiFi Connection |
|---|---|---|---|
| Power Type: | Rechargeable 18650 Battery Or Hard Wire AC12V-24V | Consumption: | Working Mode: 170mA Standby Mode: 200μA |
| Weight: | 600 G | Pickup Range: | 5 Meter |
| Working Humidity: | <95% | Message Function: | Supports Message Leaving Function |
| Shutter: | 1/25~1/100, 000 Per Second | Relative Humidity: | 85% Non-condensing |
| Ir Distance: | 3 Meters | Image Sensor: | SC2335/SC233A |
| Horizontal Angle: | 140 Horizontal Angle | Detection Angle: | 110° |
| Function: | 3G/4G/GPS/WIFI | Power: | DC12V/2A |
| Image Setting: | Support HD/SD Support Mirror | Waterproof Rate: | IP55 |
| Camera: | 1 Mega Pixel, OV9732 (125°Wide Angle) | Wide Angle: | 130 Degree |
| Screen Size: | 7 Inch | Camera Input Resolution: | AHD1080P/720P/CVBS |
| Sensor Type: | Video Counting, 98% Accuracy | Host Dimension: | 200(L) X187(W) X62(H) Mm |
| Compression: | H.265 | Voltage Input: | Adapt To 8 To 36V Ultra-wide |
| Software Support: | CMSV6 And Our Private Platform | Warranty: | 12 Months |
| Sdk: | Free SDK For Second Development | Wifi Download: | Support |
| Operation Interface: | Graphical User Interface(OSD Menu) | Customization: | Yes |
| Waterproof: | IP69K | Shockproof: | Dual Anti-vibration |
| Functions: | People Counter ,3G ,GPS ,G-sensor,UPS | ||
| Highlight: | FCC Wireless Video Door Phone,2.0 Mega Wireless Video Door Phone,Cloud Storage Smart Wifi Doorbell |
||
Product Description
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
![]()
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
