4G Live video Body Camera PTT intercon body worn camera for securityman troops

4G Live video Body Camera PTT intercon body worn camera for securityman troops
4G Live video Body Camera PTT intercon body worn camera for securityman troops 4G Live video Body Camera PTT intercon body worn camera for securityman troops 4G Live video Body Camera PTT intercon body worn camera for securityman troops 4G Live video Body Camera PTT intercon body worn camera for securityman troops

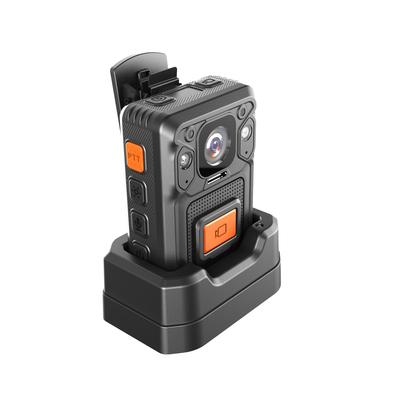

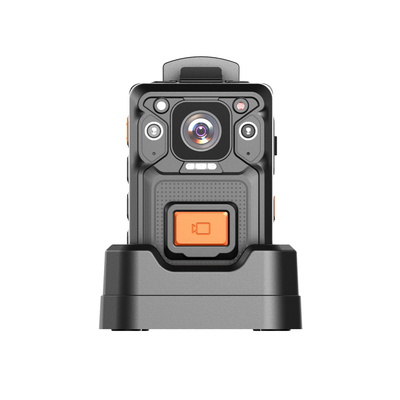

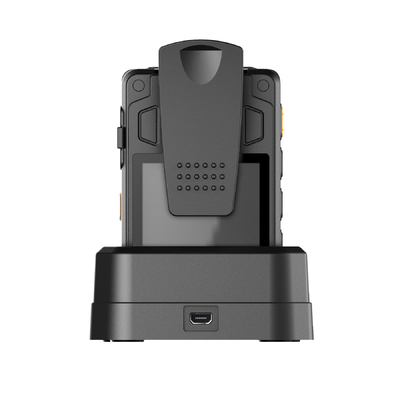

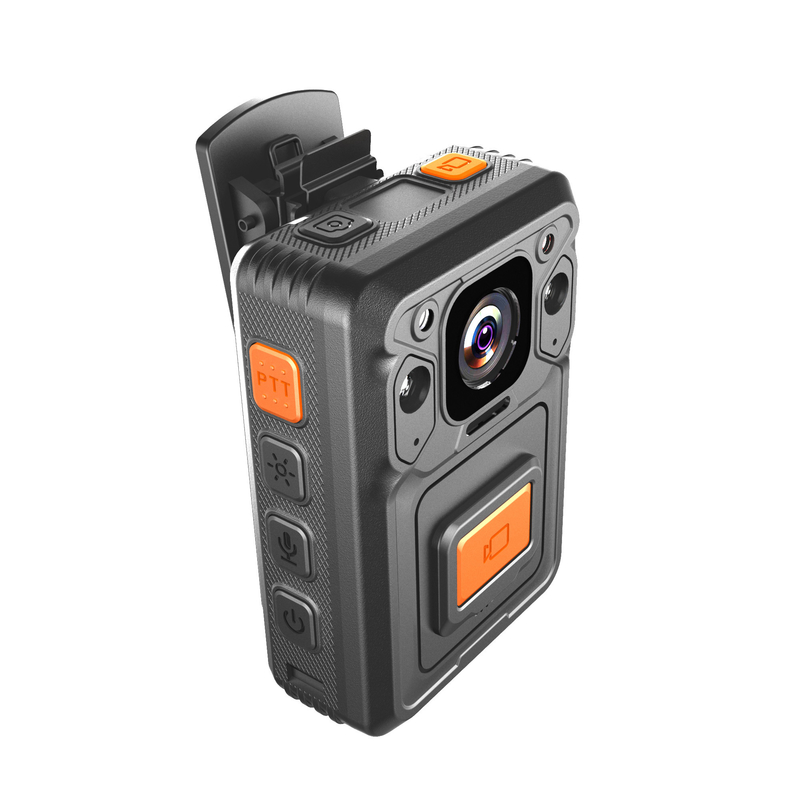

Large Image :  4G Live video Body Camera PTT intercon body worn camera for securityman troops

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Ouxiang
Certification: CE,ROHS,FCC
Model Number: OX-ZP522G
Payment & Shipping Terms:
Minimum Order Quantity: could be discussed
Price: Negotiable
Packaging Details: Neutral Packing
Delivery Time: 3-7days
Payment Terms: L/C, T/T, Western Union, Money Gram,Paypal
Supply Ability: 3000pcs/month
Detailed Product Description
PTT Walkie-talkie: Support For Many Models Waterproof: IP65
Night Vision: Up To 10 Meters With Visible Face Detection Battery: Built-in 2900mAH Lithium
Size: 80 Mm *55 Mm *30mm LCD Screen: 2 Inch TFT-LCD High-Resolution Color Display
High Light:

bluetooth body camera

,

infrared body camera

Feature
Support English, Chinese, traditional Chinese, Japanese, Portuguese, Russian, polish, French, Spanish
1. Ambarella A7LA50 Chipset
2. 2 inch LCD Display
3.Built-in GPS
4. Built-in 3200mAh battery, 12 hours video recording(1920*1080 30P)
5. Video Resolution: 2304*1296/1920*1080/1280&720/848*480
6. 5.0 MP CMOS Sensor
7. 140° field of view
8. Storage Capacity:Support 16G/32G/64G/128(With Standard 32GB)
9. Water Mark :User ID, Time and date Stamp,GPS coordinates Imbedded into Video.
10.IP68 waterproof & 2 meters shock-proof
11.No audio and photo keys,Only Video


Specification


Size 84.5 mm*56.3 mm*27.3 mm
Weight 163g
Button Front big Record button and top Record button easy operation
Yellow PTT button
Yellow SOS button(Panic button)
Hardware
Chipsets Ambarella H22
Sensor OS05A20
Indicators
3 color LED indicator for camera status
3 color LED indicator for battery level
Programmable buzzer; Vibration
Light
IR IR upto to 10 meters at 0 lux with visible shape image
Flash Light 90 degrees view angle light source for low light condition can enable/disable by button press
Laser Optional(position the object to record,enable/disable by button)
Durability
Shock Proof 1.8 m (5.9ft)
IP Rating IP67
Video/picture/audio
Coding .H.264/H.265
View Angle FOV 140 degrees
Video Resolution 2560X1440P 30FPS,1920X 1080P 30FPS (Chipsets support 4K,limit to 1080 for lower power consumption) / 1080P60 / 720P30 / 720P60 / 480P30
Video Streaming Resolution 720P30 / 480P30 / 320P30
Audio Streaming Support
Text Streaming Support
Streaming Bitrate 300kbs-4M kbs
Snap Shot During recording
Video Format MP4
Picture format JPEG
Audio Format AAC
EIS 6 axis image stabilizer(Optional)
SOS Audio alarm activates in all cameras at same group and audio
alarm in command certer
External Camera
External Camera Support
Night Vision Ultral low light performance & IR LED
Storage Optional 32 GB,64 GB,128 GB,256 GB
Hardware Interface
USB Port Support external camera connection
Pogo Pin connection Support dock & go operation
Wireless Connections
Wi-Fi 2.4G&5G, AP/STA/P2P,Wi-Fi channel can be set by cam manager
Bluetooth Support Heartbeat Rate activate recording, Remote controller, support re-development
ONVIF Support ONVIF streaming & recording
Support NVR brand such as Hikvision, Dahua, Uniview and so on
IR 10 meters (2 IR LED)
GPS Support
3G/4G Built in 3G/4G module(FDD-LTE/WCDMA/GPRS)
Clustered Talkback(PTT) Optional (camera talk to camera, camera talk to command center, command talk to cameras);can set cameras to groups from camera GUI or from command center software
Alarm SOS button to activate warning signal in camera and in command center and advise command center the position of camera
Text message Camera can send text message to camera or command center
Protocol
TCP/IP, RTSP, RTMP, GB/28181/JSON
Battery
Recording Time 1080P Up to 14 Hours;480P Up to 16 Hours
GPS and Wi-Fi on at 480P30 12 hours and 30 minutes
Standby Time 100+ hours
Charging Time 4 hours
Streaming&Recording time 7.5 hours(3G/4G version)
Pre&post recording
Pre-recording 30 seconds to 60 seconds varies from resolution settings
Post-recording 30 seconds to 60 seconds from resolution settings
Motion Detect Support
Security Features(Optional)
File Encryption AES256 encryption during writing files to memory card
AES256 encryption RTSP Video/audio/Text streaming data
Network Security Https&Http Server
Wi-Fi Security Dynamic Pin Code authentication
USB Command&JSON command
all camera settings available under mass storage mode
all camera settings available under USB simple mode
USB heart beat available
Control over LED/buzzer available under mass storage mode
Ambarella driver free even while USB encryption activated
Support driver free connection to computer
Mount solution
Standard mount 360 degrees rotatable crocodile mount
Optional mount MOLLE compatible mount
Optional accessoires CLICKFAST Stud
Video Stamp
Content supported User ID/Device ID/Date/Time/Geo-tags/Logo
Others
Working Temperature -30 -65 degrees celsus
Operating Humidity 95%
