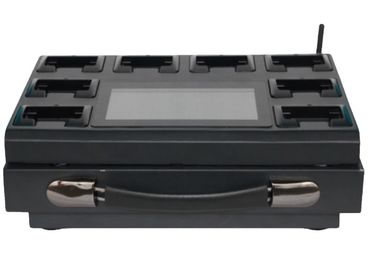

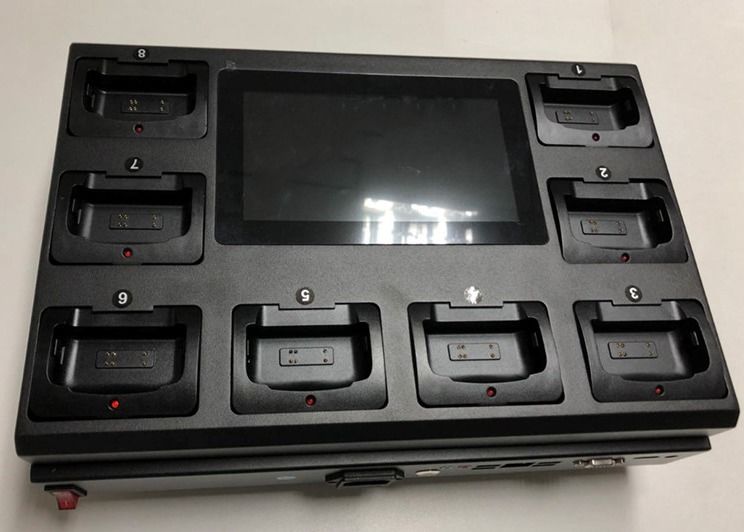

Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading

China Shenzhen Ouxiang Electronic Co., Ltd. certification
China Shenzhen Ouxiang Electronic Co., Ltd. certification
OUXIANG is very professional and fast service,Have very strong, ODM development capabilities, fast delivery orders, trustworthy company,No complaints. Thank you!

—— Mazi from Canada

OUXIANG is a very strong R & D capability, I have found more than 10 factories can not do, they successfully completed my project, very good, thanks

—— Keith From USA

The quality and service are good, delivery time is punctual every tim, 24 hours at any time to contact, order delivery, ouxiang trustworthy company

—— Oscar from Sweden

I'm Online Chat Now

Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading

Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading
Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading

Large Image :  Win 7 Camera Docking Station For Police Body Worn Cameras Data Uploading

Product Details:
Place of Origin: Shenzhen,China
Brand Name: Ouxiang
Certification: CE,ROHS,FCC
Model Number: OX-DS8
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Neutral Packing
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Type: Wifi Win7 Docking Station With 7inch Touch Screen Screen: 7 Inch HD Touc Screen
Screen Resolution: 1024X600 Screen Brightness: 250cd
RAM: DDR3 1600L 4GB Hard Disk: Hard Drive 2T /4T/ 6T /8T Hard Drive
Speaker: Two 8 OHM 3W Speaker Audio: ALC662 Chip,supply 6 Channel Output
High Light:

wireless docking station

,

portable docking station

Win7 8 ports docking station with touch screen for police body worn cameras data uploading

Features



  • With RJ45 ethernet port, Support ethernet cable connection
  • With 7 inch LCD Monitor/ touch screen to check the status for charging and recording output
  • Support 8 body worn cameras to work together at the same time
  • Automatic synchronization charge
  • Automatic copy and empty the data from law enforcement recorder
  • USB3.0/HDMI/External Display
  • With One removable Hard disk box ,support connect 2TB-10TB hard disk.
  • Memory: 4GB;
  • Support connect keyboards or Mouse to operate.
  • Including Digital evidence management system software provided
  • Default Operating System: Win7 system (optional XP/ Win8/ Win10)
  • Full metal frame, durable and concise appearance.
Specification



Screen size 7 inch LED
Screen Resolution 1024X600
Screen contrast 1000:01:00
Screen colur 16.2M
Screen brightness 250cd
Touch Screen Capacitive touch screen
Morthboard J1900 Industrial Motherboard
CPU Intel Turbo Boost 2.42 GHZ double cores
RAM DDR3 1600L 4GB
SSD SSD 60G
Hard drive bay One bay for inserting a hard disk
Hard disk optional hard drive 2T /4T/ 6T /8T hard drive
Power Industrial power supply output rating 85W
USB interface 8 usb ports HUB output current 1.2A for every port
Ouside USB interface 2 USB2.0 ports
Audio ALC662 chip,supply 6 channel output
Speaker two 8 OHM 3W speaker
Lan interface Onboard Realtek RTL8111F 1000M Lan card
WIFI Intel 5100 Wifi module,6dbWifi antenna
Work temperature subzero 20 ---+80 degree temperatures
Storage Temperature under 20℃ to 60℃
Storage Humidity Humidity:10%~90%
Lan cable RJ45 100M cable
Power cable/adapter European standard, American Standard, British Standard
Power supply AC power source 110-220V AC
Operation system Default Win7 system; optional XP/Win8/Win10 the system
Docking station system docking station system pre-installed



Detailed Images



00.jpgDocking station.jpgDocking station factory.jpgDocking station factory1.jpg

Docking station accessory.jpg

Docking station packing.jpg


Company Information



We are a high-tech corporation was founded in Sep of 1998, with 300 staffs, and a factory of 5000 quare meters, engaging in Security Products Area. For more than 10 years, We have been specializing in R&D, Designing, manufacturing & selling security products- Body worn cameras, Safety helmet cameras, PIR floodlight battery cameras, wifi video doorbells to all over the world.
Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.


Aging Testing


Our Services



Our products warranty is 1 year, we provide 2 years warranty for our long term cooperation clients.
We provide free repairing or replacement of products if the goods have any quality problem within the Warranty period.
We provide durable maintenance and Tech support service.
We will work with you to solve any problems.



OEM Sevice:

Custom Development.Products can be customized according to your request and support solution of product include hardware and software.
Welcome you to contact us!
