Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom

Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom
Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom
video play

Large Image :  Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Oxiang/ OEM/ ODM
Certification: CE, RoHS, FCC
Model Number: OX-640G
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 18.9*14.4*6.7cm
Delivery Time: Sample: Around 3 working days after payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability: 1000000/Month
Detailed Product Description
Application: Construction,Traffic,outside Material: ABS Plastic
Type: Split Camera Used On Helmet Focus Range: 0.5 Meters----Infinty
Sensor: 1/2.8"SONY323 Angle: 140°field Of View
Waterproof: IP65 Waterproof Function: Take Photo/video/audio
High Light:

RGB1638 LED Night Light

,

2000h LED Night Light

,

1000mAh battery night light



Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom



Specification



Management software 1.Real time play: support real-time 50 way data
2.Data upload: support 720P 1080P H.264 data upload
3.Beidou/GPS: Same Smarteye screen can check up to 256 camera position tracking
4.Wireless intercom:Real time 4G network wireless intercom,Multi person meeting



Opreting system Android 7.1.1
Chipset MTK6739
Processor Quad-core ARM@Cortex-A53 MPCore 1.3GHz/512KB unified L2 cache
Sensor GC4603
Storage capacity Support 16G/32G/64G/128G(With Standard 32GB TF Card)
4G/3G function 4G:FDD:B1/B2/B3/B4/B5/B7/B8/B28B(B12,B17,B20 Choose one of three);
TDD:B38/B39/B40/B41
3G: WCDMA 850/900/1700/1900/2100MHz
Wifi function builtin,support 802.11b/g protocol/2.4GHZ
GPS function Built in Beidou global positioning module (support for mobile trajectory query)
bluetooth function BT4.0



LED white lights Built-in 1pcs large functional LED white light (1W) Light distance :10M
Laser positioning Built-in one laser, accurate positioning camera target without deviation
Night Vision Distance 10M in total darkness.
Waterproof IP65
Dimension/weight 143*57*11mm/ About 150g
Battery Built-in 3300mAh battery, video recording ≥6 hours stand ≥25hours
Operating temperature -30 degrees C to +70 degrees C



Video coding resolution 1920X1080 30P1080P@30fps /720@30fps MP4 format
Video Bitrate 256kbps-8Mbps
Picture support
PTT support
Focus range: 0.5 meters - Infinity
Wide angle of view 140 degree


Features

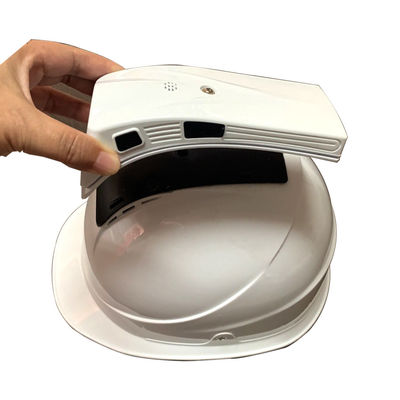

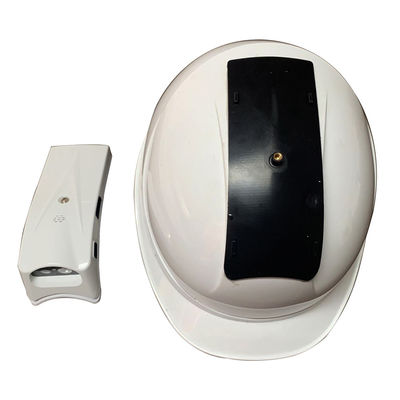

1. Split helmet camera, suitable for any helmet, easy to install
2. Conventional industrial helmets are compulsory to be scrapped after two years, and the split type is reused to save costs
3. A variety of colors are available, and colors can also be customized
4. Small size, convenient transportation and cost saving



Functions

1.Real-time video recording

2.Remote by computer/phone/web by video management software, it is free for use.
3.HD 1080P video/photo
4.Wide angle 120 degree

Product Description
Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom 0



Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom 1
Split Safety Helmet Camera Video Recording AP WIFI GPS HD Intercom 2
Why Choose us?



> Oxiang is located in Shenzhen, China, a new type of city in rapid development. We focus on CCTV Camera researching and manufacturing from 2006;



> Sales person provide Pre-sales and after-sales service; Professional engineers are always standby and assist offer solutions;



> Cooperate with multiple departments to complete raw material procurement, production, inspection, delivery and other steps;



> The product comes with a one-year warranty.
