4G ADAS DSM advanced driver assistance system Dashcam Dash Camera
Product Details:
Place of Origin: | China |
Brand Name: | OEM |
Certification: | CE/FCC/ROHS |
Model Number: | ZP908 |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 1000000/Month |
Detail Information |
|||
Camera: | 120 Degree | Software: | VMS |
---|---|---|---|
ADAS: | Algorithm | DSM: | Algorithm |
Highlight: | 65W Mini Cube Projector,4K HEVC Mini Cube Projector,2.4G Wireless Dlp Mini Projector |
Product Description

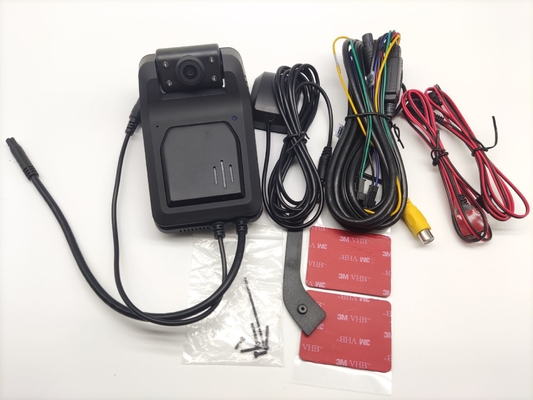

4G Dash Camera for fleet management 4G Quadruple ADAS+DSM All in One Dashcam
Specification
CPU | ARM Cortex-A7 MP2 |
Storage | 2Gb built-in DDR |
Video Input | There are two internal CVBS routes and a maximum of two external CVBS routes,1.0Vp-p, 75Ω |
Supported camera resolution:1080P,720P,D1 | |
Video Output | Reserved |
Video Standards | PAL SECAM, NTSC SECAM |
Video Compression Format | H.264 Video Compression Format |
Preview Series | Single-channel and 4-screen splicing preview supports manual/event-triggered full-screen display |
Video resolution | Support 1080P, 720P, D1 optional, total coding resources 1080P 60 frames |
Record Frame | Quality: 1 to 8, best 1, lowest 8 |
Video rate |
PAL: 100frame /s , CCIR625 line,50 games NTSC: 120 frame/s, CCIR525 line,60games; CIF: 256Kbps ~ 1.5Mbps, Multiple quality is optional HD1: 600Kbps ~ 2.5Mbps, Multiple quality is optional D1: 800Kbps ~ 3Mbps, Multiple quality is optional 720P: 1Mbps-4Mbps, Multiple quality is optional 1080P: 1Mbps~8Mbps, Multiple quality is optional |
· Video mode
|
Default automatic video recording, support ignition video recording, alarm video recording, etc |
audio input | 1way audio, built-in MIC |
Audio output | 1 way, built-in power amplifier, built-in speaker |
compressed format | G.711A |
Rec Mode | Sound and video are recorded simultaneously |

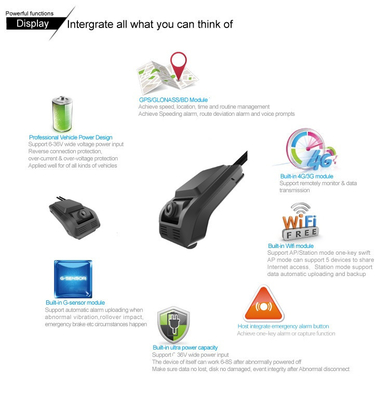

Product Features
> adopts H.264 encoding and decoding, with a maximum resolution of 60 frames at 1080P.
> Coding resolution: Supports 1080P*25fps for one route and 720P* 25fps for two
> supports 256GB TF card, support one TF card port;
> supports three IO alarm inputs and one RS232 interface.
> supports WIFI, 4G, GPS and more;
