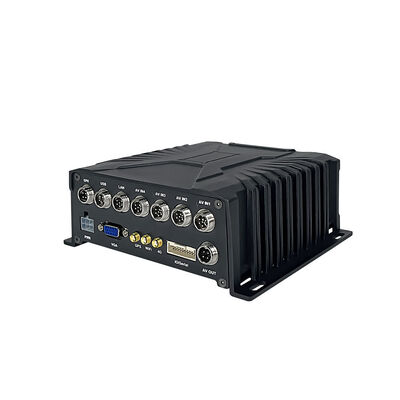

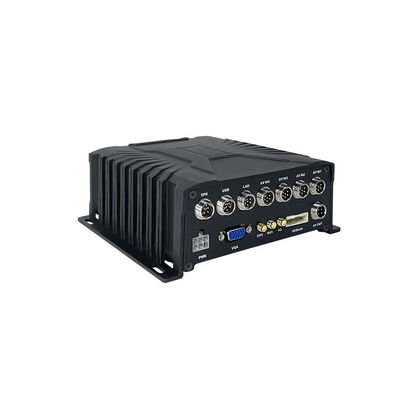

4G Mobile DVR Equipped with Adjustable Motion Detection IR Night Vision and Real Time Communication for Vehicle Security
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | CE/FCC/ROHS |
| Model Number: | OX-MD264 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50*45*36cm=19kg Weight:16kg/CTN |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000/Month |
|
Detail Information |
|||
| Image Sensor: | Color CMOS Sensor | Display Resolution: | 1.0MP/720P |
|---|---|---|---|
| Lens Type: | Glass Lens | Focal Length: | 1.7mm |
| Angle Of View: | 166 | Input/Output: | Built-in Microphone, Two-way Audio |
| Audio Compression: | G.711U | Build-InDingDong: | YES,<=90DB |
| Video Compression: | H.264 | Frame Rate: | 15-25 Rate |
| Network: | 5G/4G/WIFI | Record Format: | Synchronized Video & Audio Recording |
| Vdieo Compression: | H264/H265 | Ower Supply: | 8V-36V |
| Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Client Software: | PC And Mobile Phone Supported |
| Gps: | Built-in GPS Module | Pickup Range: | 5 Meter |
| Playback: | 4ch Playback | Operation Interface: | OSD With Mouse And Remote Control |
| Remote: | Ipad,Iphone,Android And PC | Connector: | Aviation Connector |
| Working Temperature: | 0℃--45℃ | Hotspot: | Support |
| Highlight: | night vision security camera,high resolution security camera |
||
Product Description
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection

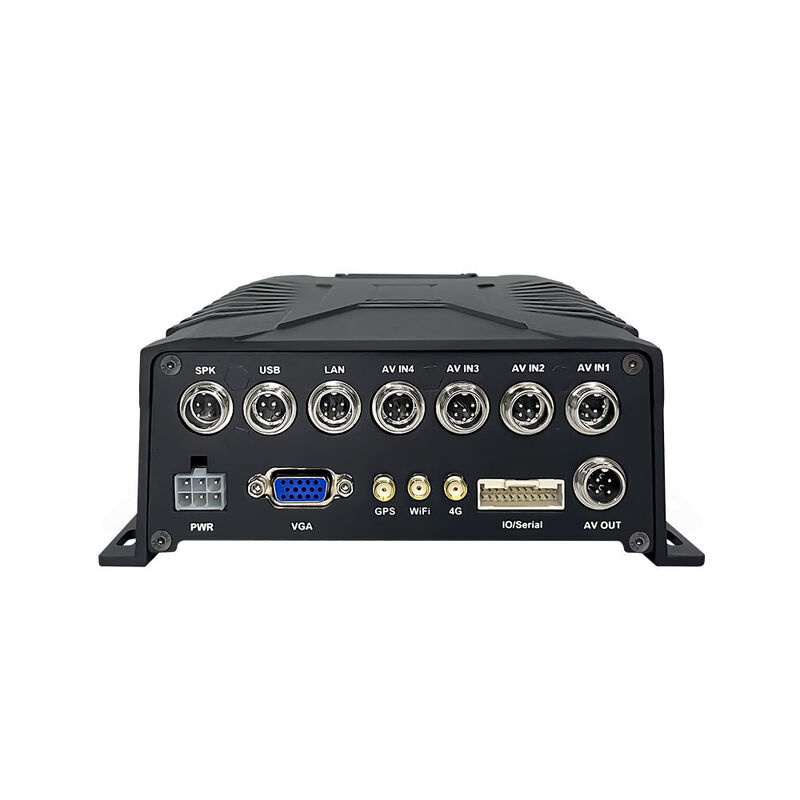

- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.

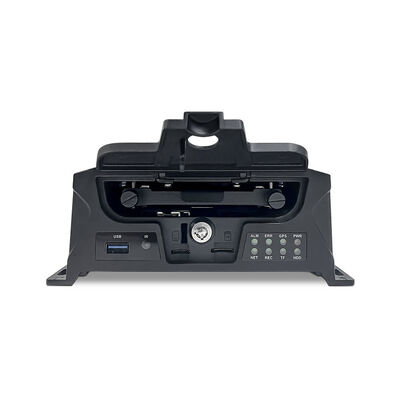

- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
