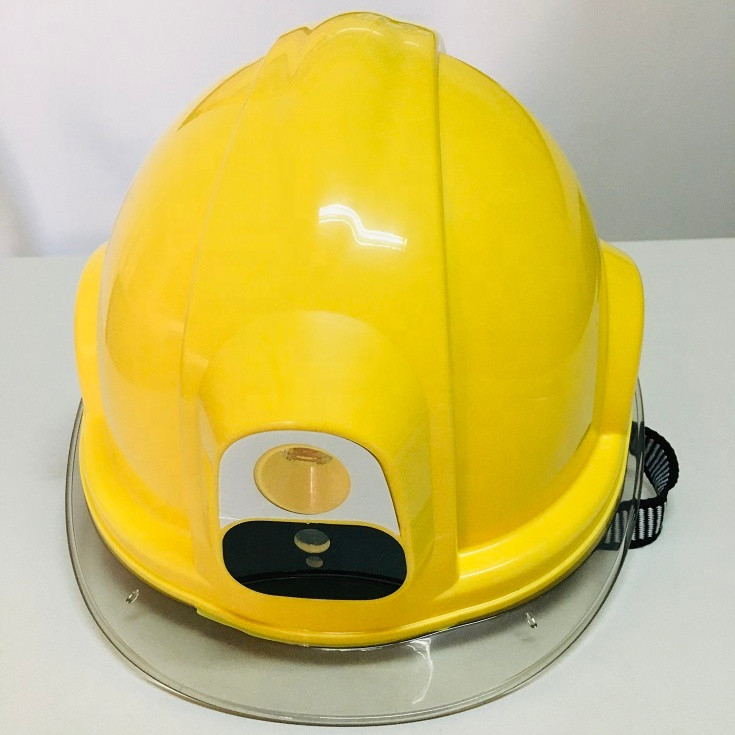

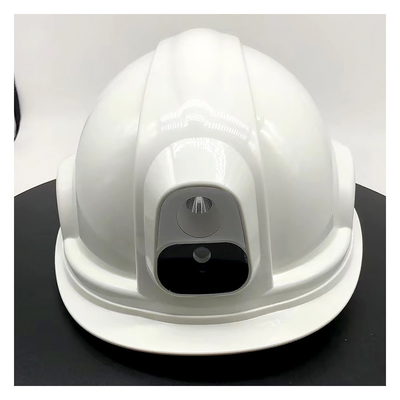

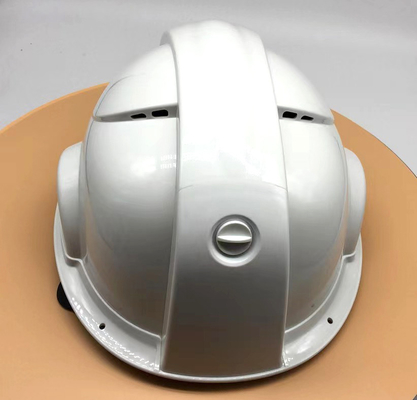

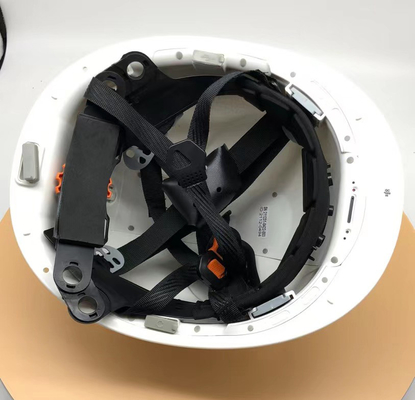

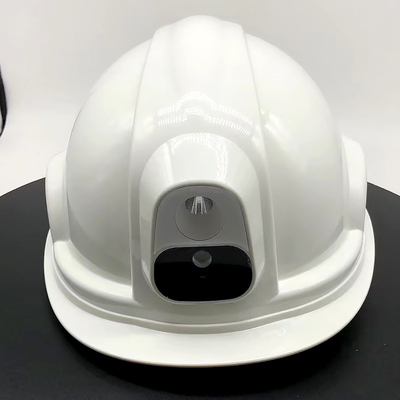

Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server

Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server
Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server

Large Image :  Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: CE/FCC/ROHS
Model Number: 620G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Neutral
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, PayPal, Alibaba
Supply Ability: 1000000/Month
Detailed Product Description
Projector: LCD Light: LED
Battery: 4200 Mah Memory: 32GB
Wifi: 2.4G&5G CPU: 4 Cores A7 Core 1.2G
High Light:

A7 Core Mini LED Projector

,

1.2G GPU Mini LED Projector

,

MP21080P Portable Phone Projector

System Operation system:Android 7.1
Processor MTK6739 Quad-core ARM@Cortex-A53 MPCore
Video interface  mipi
Data interface USB2.0 micro
Power interface TYPEC
Foucus range 0.5 Meters----Infinty
Angle of camera 120 °
Photo 16MP JPEG format
distance of night vision The human faces can be seen at 10 Meters in a totally black environment
working time standby more than 25h, camera work more than 5h
waterproof IP66
lithium battery 4200 mah




Operating system: Android 7.1.1
Storage capacity: Built in Standard 32G, Support max 64G
4G/3G function Real-time data upload: Support live video streaming, remote monitoring real time video/audios on mobile phone APP and PC VMS
Wifi function: support 802.11b/g/n protocol/2.4GHZ
GPS function: Built in Beidou global positioning module (support real time GPS tracking and playback GPS tracking.
Video resolution: 1920X1080 30fps and 720P 30fps; MP4/MKV format
Video Bitrate: 256kbps-8Mbps
Focus range: 0.5 meters - Infinity
Wide view angle: 140 degree
LED white light: Built-in 1pcs large functional LED white light (1W) can see the face in 20M;see the body in 30M
Laser positioning: Built-in one laser, accurate positioning camera target without deviation
Night Vision Distance up to 10M in total darkness.
Waterproof IP67
Dimension/weight 289*233*150mm/550g
Battery Replaceable 3300mAh battery,Only video recording ≥5 hours; Only lighting ≥6hours
Video Management software: Real time play: support real-time 25 Channels
Data upload: support 720P or 1080P H.264 data upload
Beidou/GPS: Same Smarteye screen can check up to 256 cameras position tracking
Wireless intercom: Real time 4G network wireless intercom, Multi devices intercom

White light Parameters
Voltage
 2.85V-3.6V
Electric current 350MA-1A
Color temperature 5000-10000K
Luminous flux MAX 250Lumen(@1000mA)
Luminous angle 115°-130°
Power 1W,Luminous Distance Max 20 meters (65.62 Ft)



Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 0Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 1Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 2Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 3Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 4Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 5Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 6Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 7Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 8Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 9Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 10Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 11Hard hat Safety helmet 4G Real-Time GPS wifi live streaming for Mining Construction end software server 12
