| Storage: | 64Mb Flash | Chip（CPU）: | Ingenic T31ZL |
|---|---|---|---|
| Video Format: | MP4（H.264） | Video Size/Frame Rate: | 1080P/20fps |
| Chime: | Support RF 433MHZ Chime | WIFI Connection: | Support 2.4GHz Wifi (802.11 B/g/n) |
| High Light: | RF 433MHZ Motion Detection Camera,GC2053 CMOS Motion Detection Camera,Ingenic T31ZL Night Vision Camera |
||
| Specifications | |
| Chip(CPU) | Ingenic T31ZL |
| Storage | 64Mb flash |
| Sensor | 1080p GC2053 CMOS sensor |
| Lens | 120°wide-angle lens |
| Sensor Capability | Support automatic white balance, automatic gain control, automatic backlight compensation |
| Signal to Noise Ratio | ≥39dB |
| Minimum Illumination | 0.8Lux/F1.４(color mode),0.3Lux/F1.4(black and white mode) |
| Night Vision | double filter automatic switching 6pcs 850nmΦ28Mil high power infrared lights |
| Night Vison Distance | The best effect is 3 meters; the farthest night vision distance is 20 meters. |
| Motion Detection | PIR motion detection: The motion detection distance is adjustable (it will be trigered immediately within the effective distance); The best motion effect is 2 meters, and the farthest distance is 4 meters. (The results might be affected by temperature and light) |
| Video Format | MP4(H.264) |
| Video Size/Frame Rate | 1080P/20fps |
| When to Record | 1. Record when there is motion detection 2. Record when someone ring the doorbell 3. Record manually from APP |
| Video Duration | 1. When motion detection is activated or when someone rings the doorbell, the doorbell will record a 15 seconds video, and then enter sleep mode automatically. When in the sleep mode, activate the motion detection or ring the doorbell, the doorbell will record another 15 seconds video. 2. Each time when you get to live view, the doorbell will record a video. The video duration is limited to 3 minutes. It will stop recording after 3 minutes. " |
| Battery type/capacity | 18650 battery cell 2600mAH*2=5200mAH |
| Battery discharge time | 2pcs 18650 batteries can standby for 2 months. If it needs to record 30 of 15-second video each day, it can last for 45 days. |
| Network Protocol | TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P |
| WIFI connection | support 2.4GHz wifi (802.11 b/g/n) |
| Chime | support RF 433MHZ chime |
| Storage | 1. Support cloud storage service (doesn't have SD card storage function). 2. There is 7 days rolling cloud storage service for free, and the service is valid for 90 days. Afther 90 days, cloud storage service needs to be paid. |
| Working voltage | 3.7V 18650 Li-ion battery |
| Working current | Starting current 260mA, sleep mode standby current 1.7mA |
| USB Charging Voltage | DC 5V / 1.5A |
| Storage temperature(°C) | (0℃～50°C) |
| Operating temperature(°C) | ( -10～70°C) |
| Operating humidity | <95% |
| Wake-up methods | 1. Wake-up by ringing the doorbell 2. Wake-up by PIR motion detection 3. Wake-up by APP live preview |
| Account | Total 9 users/accounts can be connected to same device: 1 main account + 8 shared accounts. It support up to 3 users to get to live view at the same time, but only 1 user can do the live view at one time. |

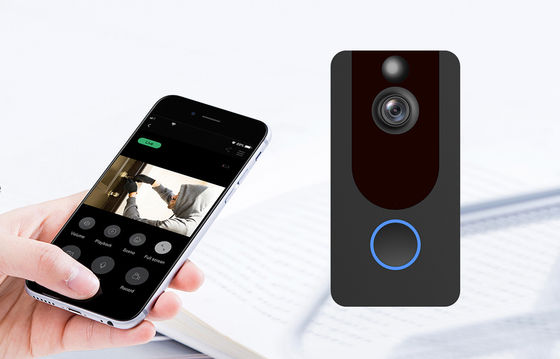

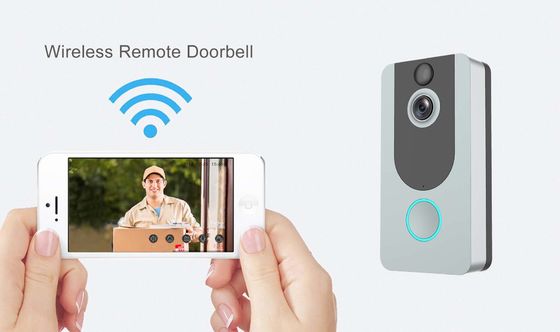

| Application/Use | When there is visitors, the doorbell can record short videos, do two-way talk, and the house owner can see online what is happening outside the door. |
| Features | Wireless installation; ultra-low power consumption; long distance active wake-up; support multiple users view online at the same time |
