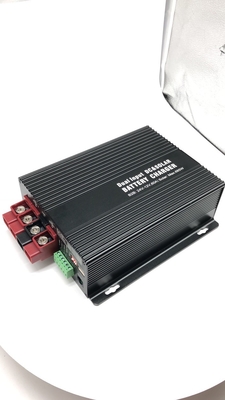

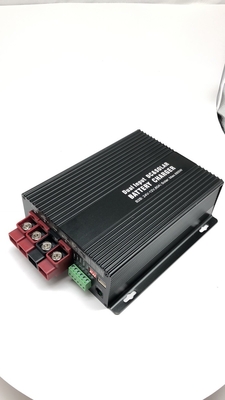

18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS

18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS
18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS

Large Image :  18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS

Product Details:
Place of Origin: Shenzhen
Brand Name: Oxiang
Certification: CE.RoHS,FCC
Model Number: BS24126050
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Box Size:27.8*24*10.2cm
Delivery Time: Sample: Around 3 working days after payment
Payment Terms: T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability: 10000pcs/month
Detailed Product Description
B2B: 12V60A MPPT: 12V50A

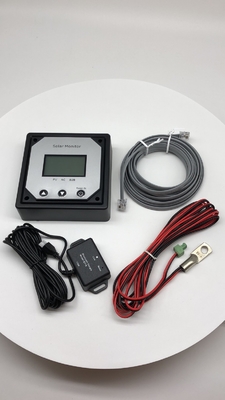

Product Size: 19*21.5*7cm Choose Accessories: Monitor(MT-2); Bluetooth Dongle(BT10); Temperature Sensor(TRS)
Socket Standard: EU/AU/UK/US Color: Black & White
High Light:

MPPT DC Battery Charger

,

18mA DC Battery Charger

,

Smart TRS Solar Battery Charger

DC -DC Support Bluetooth, Free APP And Meter Dual Input DC & Solar Battery Charger Automatic Smart Vehicle Charger TRS



Parameters

Input voltage
24v
Output voltage
12v
B2B charge
12V 60A
MPPT solar
12V 50A
Pvmax
685W
Product size
19*21.5*7cm
Weight
1.75KG/Box
self-consumption current
18mA



Model Number
BS24126050
Port
6 X USB, 3 Type-C
Input voltage and current
12-24V/5A
output voltage and current
12V/2A
Place of Origin
SEHNZHEN
Supports Solar Energy
yes
main battery
12v
main battery type
GEL,Sealed,Flooded,LiFePO4,Lithium-ion

Function

This is a automatic DC-DC charger that can charge the main battery through the alternator
and starter battery, or Solar panels charge the main battery (some models), DC-DC battery
charger designed specifically for motorhomes, campers, ships, etc.

B2B Charge

It means to charge the main battery through alternator and starter battery. If it is not used in
the vehicle, you can also use one battery to charge another battery
1. When the vehicle is running, the vehicle alternator can quickly charge the main battery
through the charger at full power
2. The charger can charge the main battery according to the specified voltage and current by
boosting or stepping down to ensure that the main battery is in accordance with the standard.
charging curve charging
MPPT Solar Charger
1.The charger can increase the charging efficiency of the solar panel by 10-30% through
MPP technology (search for the maximum power point)
2. The charger can charge the main battery according to the specified current by boosting
or stepping down to ensure that the main battery is charged according to the standard
charge curve charging
3. When the vehicle is not used for a long time, you can maintain a small trickle charge flow
for the starter battery to ensure that the starter battery has enough electricity to start the
vehicle

Other functions

1. Fully automatic charging: In order to continuously charge the battery, the controller
can always be connected to the car battery. When the charging energy is stopped,
such as the car stops driving, the battery will not discharge in the reverse direction.
2. Multiple protection functions: with overheating, overvoltage, short circuit, wrong
connection protection
3.External temperature sensor: The ambient temperature will affect the parameters for
charging the battery. The controller needs to perform parameter compensation according
to the temperature of the battery, especially in places with large temperature changes. It is
strongly recommended to install a temperature sensor.
Note: Lithium batteries do not require temperature compensation
4. Lithium battery automatic wake-up function: When the lithium battery BMS is protected
for some reason, the controller can automatically wake up the BMS and continue to charge
the lithium battery


18mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 018mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 118mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 218mA MPPT DC Battery Charger Free APP Dual Input DC Automatic Smart TRS 3
