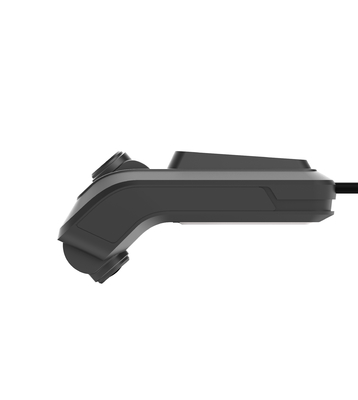

PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera

China Shenzhen Ouxiang Electronic Co., Ltd. certification
China Shenzhen Ouxiang Electronic Co., Ltd. certification
OUXIANG is very professional and fast service,Have very strong, ODM development capabilities, fast delivery orders, trustworthy company,No complaints. Thank you!

—— Mazi from Canada

OUXIANG is a very strong R & D capability, I have found more than 10 factories can not do, they successfully completed my project, very good, thanks

—— Keith From USA

The quality and service are good, delivery time is punctual every tim, 24 hours at any time to contact, order delivery, ouxiang trustworthy company

—— Oscar from Sweden

I'm Online Chat Now

PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera

PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera
PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera
video play

Large Image :  PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera

Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE, Rohs, FCC
Model Number: OX-ZP907
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Gift Box Size:19.7*13.2*10.5cm;Gift Box Weight:0.95kg 1 Carton: 36pcs /34.5kg Carton Size:59.5*42.5*42.5
Delivery Time: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS/Month
Detailed Product Description
Size: 55*77*120mm Weight: About 240g;
Camera Wide Angle: 120° Support 4G Band: B1/B3/B5/B8/B34/B38/B39/B40/B41
Storage Capacity: Support 32G/64G/128G/256G TF Card Built-in MIC And Speaker: Yes
High Light:

PAL SECAM Car Dash Camera

,

CVBS Output Car Dash Camera

,

FCC Dual Lens Dash Camera

4G Car Dash Camera Newest Car Recorder Camera With Night Vision



Specification



Operating Language Chinese/ English
Operating System Linux
Operating Interface A graphical menu operation interface (OSD menu) that allows character stacking and does not contain CVBS output by default
GUI Set system parameters by remote control or through mobile APP
CPU ARM Cortex-A7 MP2
Storage 2Gb built-in DDR
Video Input There are two internal CVBS routes and a maximum of two external CVBS routes,1.0Vp-p, 75Ω
  Supported camera resolution:1080P,720P,D1
Video Output Reserved
Video Standards PAL SECAM, NTSC SECAM
Video Compression Format H.264 Video Compression Format
Preview Series Single-channel and 4-screen splicing preview supports manual/event-triggered full-screen display
Video resolution Support 1080P, 720P, D1 optional, total coding resources 1080P 60 frames
Record Frame Quality: 1 to 8, best 1, lowest 8
Video rate

PAL: 100frame /s , CCIR625 line,50 games

NTSC: 120 frame/s, CCIR525 line,60games;

CIF: 256Kbps ~ 1.5Mbps, Multiple quality is optional

HD1: 600Kbps ~ 2.5Mbps, Multiple quality is optional

D1: 800Kbps ~ 3Mbps, Multiple quality is optional

720P: 1Mbps-4Mbps, Multiple quality is optional

1080P: 1Mbps~8Mbps, Multiple quality is optional

Video mode

Default automatic video recording, support ignition video recording, alarm video recording, etc
audio input 1way audio, built-in MIC
Audio output 1 way, built-in power amplifier, built-in speaker
compressed format G.711A
Rec Mode Sound and video are recorded simultaneously



Product Feature

supports 256GB TF card, support one TF card port;

> supports three IO alarm inputs and one RS232 interface.

> supports WIFI, 4G, GPS and more;

> allows mobile apps, clients, and platform software to preview videos and configure parameters.

> a special file system, improving disk read and write efficiency and recording stability.



PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera 0PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera 1

PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera 2PAL SECAM Car Dash Camera CVBS Output FCC Dual Lens Dash Camera 3



FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Western Europe(30.00%),North America(30.00%),Northern Europe(15.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
body worn camera,4G helmet camera,4G Solar camera,Wifi video doorbell,Charge Controller

4. why should you buy from us not from other suppliers?
We have more than 15 years of experience in design and development,Strong R&D team of 65 engineers. From 2006 to now , Oxiang has 15 years of Chinese market development, sales, service, accumulation and summary. Our products has covered with most countrie
