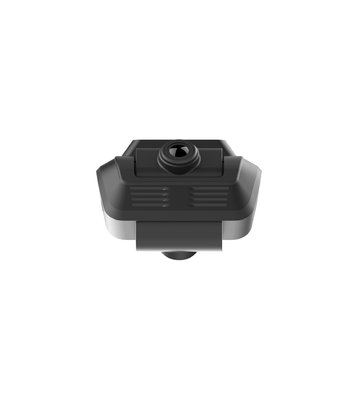

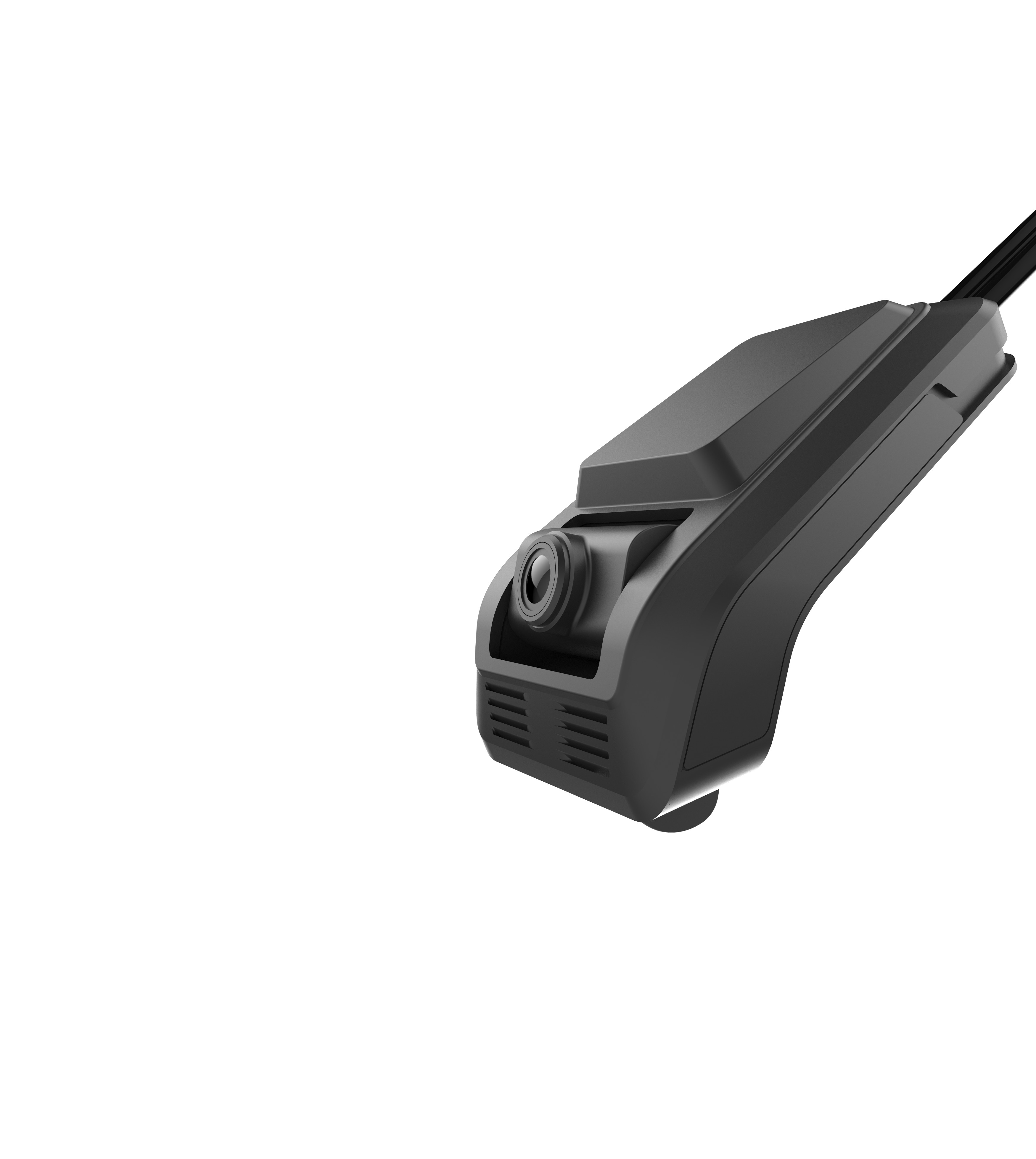

NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection

NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection
NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection
video play

Large Image :  NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection

Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE, Rohs, FCC
Model Number: OX-ZP908
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Gift Box Size:19.7*13.2*10.5cm;Gift Box Weight:0.95kg 1 Carton: 36pcs /34.5kg Carton Size:59.5*42.5*42.5
Delivery Time: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 5000PCS/Month
Detailed Product Description
*. Operating System: Embedded Linux, Good Stability; Weight: About 240g;
Camera Wide Angle: 120° Support 4G Band: 4G Full Netcom Supports Global Frequency Band
Storage Capacity: Support 32G/64G/128G/256G TF Card Built-in MIC And Speaker: Yes
High Light:

NTSC SECAM Dual Channel Dashcam

,

BSD Detection Dual Channel Dashcam

,

4G Quadruple Dual Dashboard Camera

4G Dash Camera for fleet management 4G Quadruple ADAS+DSM All in One Dashcam



Specification

Operating Language Chinese/ English
Operating System Linux
Operating Interface A graphical menu operation interface (OSD menu) that allows character stacking and does not contain CVBS output by default
GUI Set system parameters by remote control or through mobile APP
CPU ARM Cortex-A7 MP2
Storage 2Gb built-in DDR
Video Input There are two internal CVBS routes and a maximum of two external CVBS routes,1.0Vp-p, 75Ω
  Supported camera resolution:1080P,720P,D1
Video Output Reserved
Video Standards PAL SECAM, NTSC SECAM
Video Compression Format H.264 Video Compression Format
Preview Series Single-channel and 4-screen splicing preview supports manual/event-triggered full-screen display
Video resolution Support 1080P, 720P, D1 optional, total coding resources 1080P 60 frames
Record Frame Quality: 1 to 8, best 1, lowest 8
Video rate

PAL: 100frame /s , CCIR625 line,50 games

NTSC: 120 frame/s, CCIR525 line,60games;

CIF: 256Kbps ~ 1.5Mbps, Multiple quality is optional

HD1: 600Kbps ~ 2.5Mbps, Multiple quality is optional

D1: 800Kbps ~ 3Mbps, Multiple quality is optional

720P: 1Mbps-4Mbps, Multiple quality is optional

1080P: 1Mbps~8Mbps, Multiple quality is optional



Product Features

> Coding resolution: Supports 1080P*25fps for one route and 720P* 25fps for two

> allows mobile apps, clients, and platform software to preview videos and configure parameters.

> a special file system, improving disk read and write efficiency and recording stability.

> a built-in AI intelligent algorithm supports ADAS, DMS, and BSD detection



NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection 0NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection 1NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection 2NTSC SECAM Dual Channel Dashcam 4G Quadruple BSD Detection 3



FAQ

1. who are we?
We are based in Guangdong, China, start from 2011,sell to Western Europe(30.00%),North America(30.00%),Northern Europe(15.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.
what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese
