| Lead-Acid, Gel, AGM Batteries Nominal Voltage: | 12V | LiFePO4 Nominal Voltage: | 12.8V |
|---|---|---|---|
| Lithium- Ion( NCM) Nominal Voltage: | 11.1V | Capacity (Battery Size), Recommended: | 45-280AH |
| Name: | DC DC Battery Charger | Approval: | CE,ROHS,FCC |
| High Light: | OEM 12V DC DC Battery Charger,Intervention Vehicles DC DC Battery Charger,FCC DC Battery Charger |
||

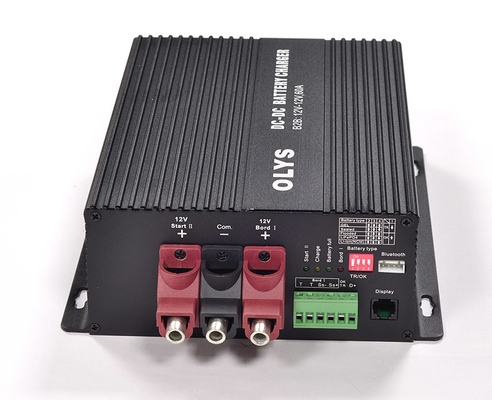

All-automatic DC-DC battery charger controller battery (12V) to charge the battery for motor homes
Specification
| Input Voltage Range "Start II" ,"D+" controlled: | 10.5-16V |
| Maximum charging power: | 780W |
| " Bord I" Max. charge current | 60A |
| Activation Control Input "D+" | 8-16V |
| Signal Output "OK/TR", Switch Position "TR", Cutoff Relay Bypass/max |
12V/1A |
| Signal Output "OK/TR", Switch Position "OK" | 12V/1A |
| Input "T T" for Battery Temperature Sensor "Board I": | YES |
| " Ss-" "Ss+" Inputs Sensor Cables "-" and "+" for Battery "Board I": | YES |
Features:
. The output voltage is stabilized, free of peaks, smoothed and filtered.
. Galvanic isolation between input and output:
. No overvoltage at the output and thus protection of the consumer if the ground line is lost.
. Clean, undisturbed mass ratios, even with long supply lines.
. Stable operating voltage on site in mobile operation, e.g. Containers, trailers, roll containers etc.
. Filtering and suppression of disturbances on the input to the output side.
. Fully automatic continuous operation: The DC-DC converter can constantly work with the battery
