| Main Battery: | 12V | Main Battery Type: | GEL, Sealed, Flooded, LiFePO4, Lithium-ion |
|---|---|---|---|
| Vehicle Starter Battery: | 12V | Starter Batter Type: | Lead-acid |
| DC-DC Max. Charging Current: | 60A | Solar Max. Charging Current: | 30A |
| Solar Max. Voltage: | 50V | Self-consumption Current: | 24mA |
| High Light: | B2B 60A Solar Battery Charger Controller,12V Solar Battery Charger Controller,MPPT Dual Input Solar Charge Controller |
||

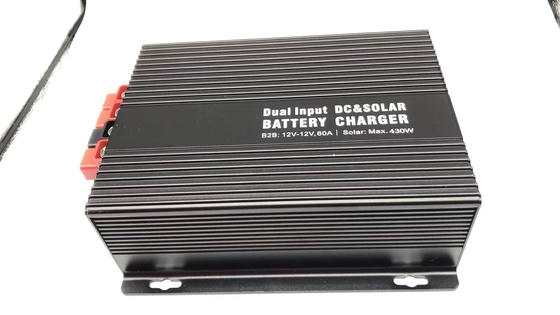

Dual Input DC & Solar Battery Charger Controller Smart Vehicle Charger Controller 12V-12V B2B 60A MPPT 30A
Specification
|
cable cross section |
cable length “+ Start II” |
cable length with insulated construction “– Batt.” |
“Fuse II” cable protection |
cable length “– Com.” to “– Board I” |
cable length “+ Board I” |
“Fuse I” cable protection |
cable lengths - and + “solar panels” |
| 4mm2 | _ | _ | _ | _ | _ | up to 4m | |
| 6mm2 | _ | _ | _ | _ | _ | up to 6m | |
| 10mm 2 | _ | _ | _ | 0.5-2.0m | 0.5-2.0m | 80A | up to 10m |
| 16mm 2 | up to 7m | up to 7m | 100A | 1.5-3.0m | 1.5-3.0m | 80A | up to 16m |
| 25mm 2 | up to 10m | up to 10m | 100A | 2.5-5.0m | 2.5-5.0m | 80A | _ |
Features:
This is a all-automatic charger with 2 charging sources, you can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery, which can automaticall Intelligent switching charging method, specially designed for RVs, exposed cars, campers, ships, etc.
BS126030: B2B: 12V-12V/60A, MPPT solar charger: 12V/30A,430W
B2B Operation :mobile operation from dynamo and starter battery (Battery to Battery):
it refers to charging the main battery through dynamo and starter battery, .If it is not used in the Vehicle , you can also use one battery (12V) to charge another
1. The efficient charging converter (booster) allows full charging of the board battery during driving.
2. It increases/reduces the voltage to the level, which is required for precise charging of the board battery with the optimum characteristic line of charging.
3. The simultaneously supplied 12 V consumers are protected against overvoltage and voltage fluctuation
Solar Operation
1. . The controller can improve the charging efficiency of the solar panel by 10-30% through MPP technology ( automatically calculating the maximum power yield), effectively shortening the charging time
2. The controller can charge the main battery according to the specified current by boosting or stepping down to ensure that the main battery is charged according to the standard charging curve
3. Auxiliary charging for support charging and trickle charging of the vehicle's starter battery in case of extended standstill periods.
