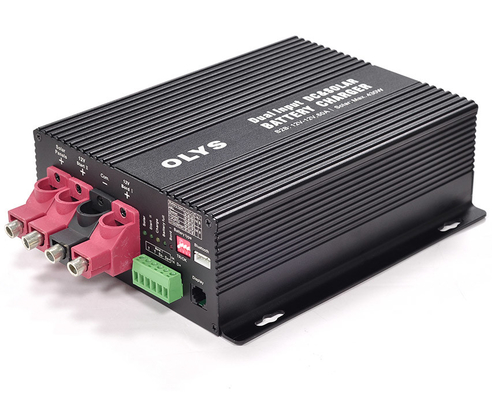

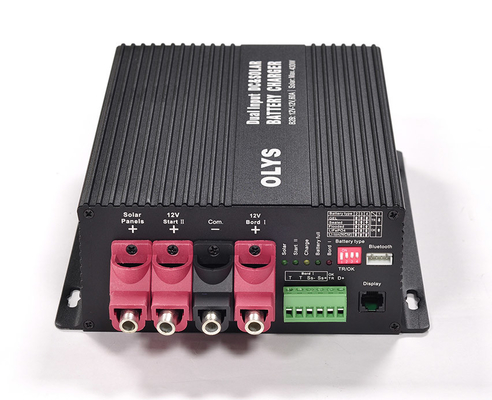

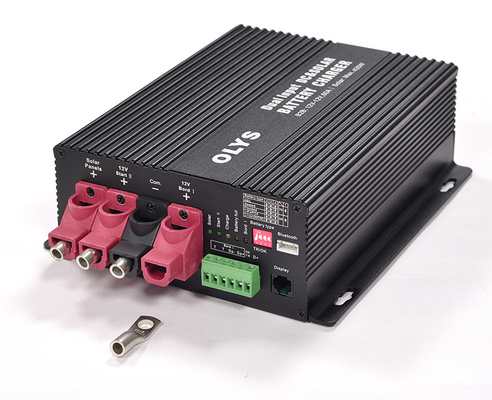

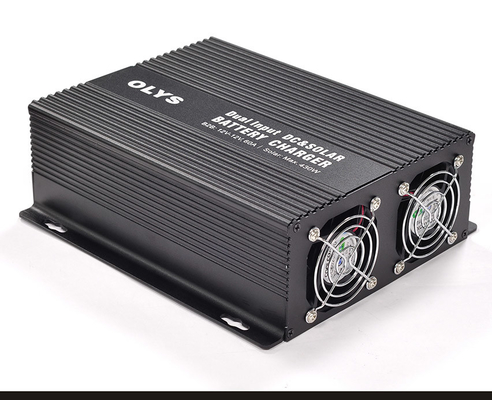

Smart Dual Input DC Solar Automatic Battery Charger 12V MPPT Solar Charge Controller
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | BS126030 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Box Size：28*24.5*10.5cm |
| Delivery Time: | Sample: Around 3 working days after payment |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, Credit Card |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Lead-Acid, Gel, AGM Batteries Nominal Voltage: | 12V | Capacity (Battery Size), Recommended: | 90-560 AH |
|---|---|---|---|
| Input Voltage Range %22Start II%22 ,“D+” Controlled: | 10.5-16V | Activation Control Input %22D+%22: | 8-16V |
| Max.PV Power(Pmax.): | 430W | Max.PV Current: | 26A |
| Highlight: | FCC Solar Automatic Battery Charger,MPPT Solar Automatic Battery Charger,Smart 12V MPPT Solar Charge Controller |
||
Product Description
Dual Input DC & Solar Battery Charger Automatic Smart Vehicle Charger
Parameters
|
12 V / 12 V B2B Charging operation |
|
| Input Voltage Range "Start II" ,“D+” controlled: | 10.5-16V |
| Input Overvoltage Disconnection "Start II" , max.: | 16.5V |
| " Bord Ⅰ" Max. charge current | 60A |
| Activation Control Input "D+" | 8-16V |
|
Signal Output "OK/TR", Switch Position "TR", Cutoff Relay Bypass/max |
12V/1A |
| Main battery " Bord Ⅰ" | |
| Lead-Acid, Gel, AGM Batteries Nominal Voltage | 12V |
|
LiFePO4 Nominal Voltage lithium- ion( NCM) Nominal Voltage |
12.8V 11.1V |
| Capacity (Battery Size), recommended: | 90-560AH |
|
Vehicle Starter Battery “Start II”: |
|
| Vehicle Starter Battery Nominal Voltage: | 12V |
| Min. Battery Capacity (Size), recommended: | 100AH |
| MPPT solar charge controller | |
| Max.PV power(Pmax.) | 430W |
| Max.PV current | 26A |
|
max. Open Circuit Voltage (Voc): " Bord Ⅰ" Max. charge current |
50V 30A |
| " Bord Ⅰ" charging current for “start Ⅱ" | 0-5A |
Feature
Dual input DC & Solar Battery charger support Bluetooth, Free APP and Meter,Automatic smart vehicle charger,Battery to Battery
1.DC-DC charge: 12V 60A
2.MPPT solar: 12V 30A；Pvmax:430W
3.Input voltage: 10.5-16.0v
4.Charge Battery type:Lead-acid,GEL,Sealed,Flooded,LiFePO4,Lithium-ion
Choose Accessories: Monitor(MT-2); Bluetooth Dongle(BT10); Temperature Sensor(TRS)
