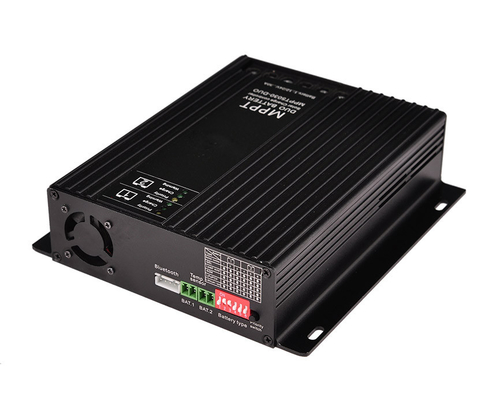

Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP

Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP
Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP

Large Image :  Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP

Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE,ROHS,FCC
Model Number: MPPT5030-DUO
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Box Size:21*18*6.5cm Weight : 0.9KG/Box
Delivery Time: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000pcs/month
Detailed Product Description
System Voltage: 12V/ 24V Auto Recognition Rated Charging Current: 30A
Battery Voltage Range: 9V-32V PV Max. Open Circuit Voltage: 50V(25℃)
High Light:

Dual Battery MPPT Solar Charge Controller

,

Bluetooth APP MPPT Solar Charge Controller

,

MPPT Dual Battery Solar Charge Controller

12V/24V30A Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP



Specification

PV Max. input power 12V: 390W
24V: 780W
Battery type GEL, Lead- acid, AGM, LiFePO4, Lithium- ion
Battery over-voltage protection 15.5V
Battery overvoltage recovery voltage 13.7V
Direct float charge voltage (no constant voltage charge) 12.6V
Automatically change to priority battery 12.0V
Boost charging recovery voltage 13.2V
Constant voltage charging time 2h



Features:

1.Increase the charging efficiency. Compared with the traditional PWM controller, the MPPT charging efficiency can be increased by 10-30%. (Controller conversion efficiency>95%)
2.Five types of batteries can be selected through the DIP switch. GEL battery, lead-acid battery, AGM, LiFePO4, and Lithium-ion
3.Double battery charging. Two groups of batteries can be connected at the same time, and the batteries can be charged according to the priority set by the user, Improve the charging efficiency of solar panels
4.With Bluetooth function, it can be connected to an external Bluetooth module, and the controller parameters can be displayed through the mobile phone APP (you need to purchase a separate Bluetooth adapter), and the effective distance of Bluetooth is 10 meters.



Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP 0Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP 1Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP 2Dual Battery MPPT Solar Charge Controller Support Bluetooth Free APP 3
