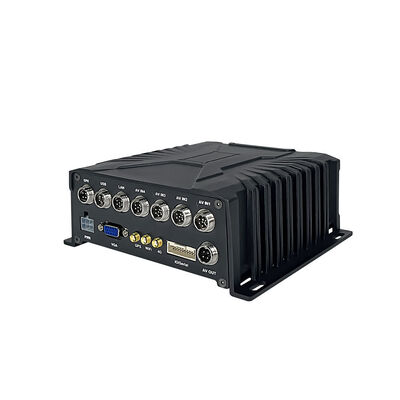

Vehicle Monitor System with AI ADAS DMS 4Channels DMVR Dashcam

This series of products is a Super cost-effective SD Card Mobile DVR designed for the mobile surveillance market. Support wide power Voltage input, support large-capacity SD card recording, USB backup; use professional and reliable aviation plug connectors; unique UPS t echnology, combined with advanced software and hardware, and incorporate a series of detail ed considerations to make the product more outstanding; High appearance, Precise structure, low power consumption, good heat dissipation; simple installation, easy operation, and extre mely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, d angerous goods vehicles, Sedan cars, ships, etc.



The detailed features are as follows:

Industrial design, stable and reliable, easy to install

Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .

Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection

Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance

Support 4 channels of video and audio input, frame rate and image quality are adjustable

Support single SD card Max 512G large capacity recording

The video content has the power-off protection function, and the video will be automatically restored when power recovery

Support video loss alarm function

Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself

Support MDVPlayer and standard players, provide playback, analysis, management and other functions

Support Firmware upgrade via U disk

Choose GPS function



Item		Parameters
OS		Embedded Linux
System language		English, other (free customizable)
Video compression format		H.265/H.264 compression format
OSD		Character superposition function, support time and date, vehicle ID and other information image superposition
GUI	graphic interface	System parameters can be set through external display and remote control operation
Video and recording system	Video input	4CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω
	Video output	1CH mixed video output (Can be changed to VGA output), 1.0Vp-p, 75Ω
	Preview function	Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function
	Video resolution	4CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 4 channels 1080P
	Record mode	Default automatic recording, support ACC recording, manual recording, alarm recording, etc.
Audio	Audio input	4CH ,aviation plug
	Audio output	1CH ,aviation plug
	Format	G711a compression format
Alarm input		4CH alarm inputs, with alarm linkage function
Alarm Output		1CH output
Positioning		Support built-in GPS/BD(GPS/GLONASS) module
sensor		Support built-in acceleration sensor ( standard no, for optional)
Video storage	SD Card	Maximum support 1x512G SD card, loop recording
	File format	H.265/H.264
Video playback	Video search	Search for recording video files by recording time, recording mode, etc.
	Playback	Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional
upgrade	Firmware upgrade	Support U Disk Upgrade Firmware
Power	Management	Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection; Support timing power on/off , delayed power on/off function
	Input voltage	DC:8 ~ 36V
	Consumption	Normal work maximum: 5W, standby: 0.5W
working environment	temperature	-20℃ ~ 70℃
	humidity	20% ~ 80%
Safety management	Password access	Two-level management of user password and administrator password
Other	Size:	153(W) x35(H) x121(L) mm
