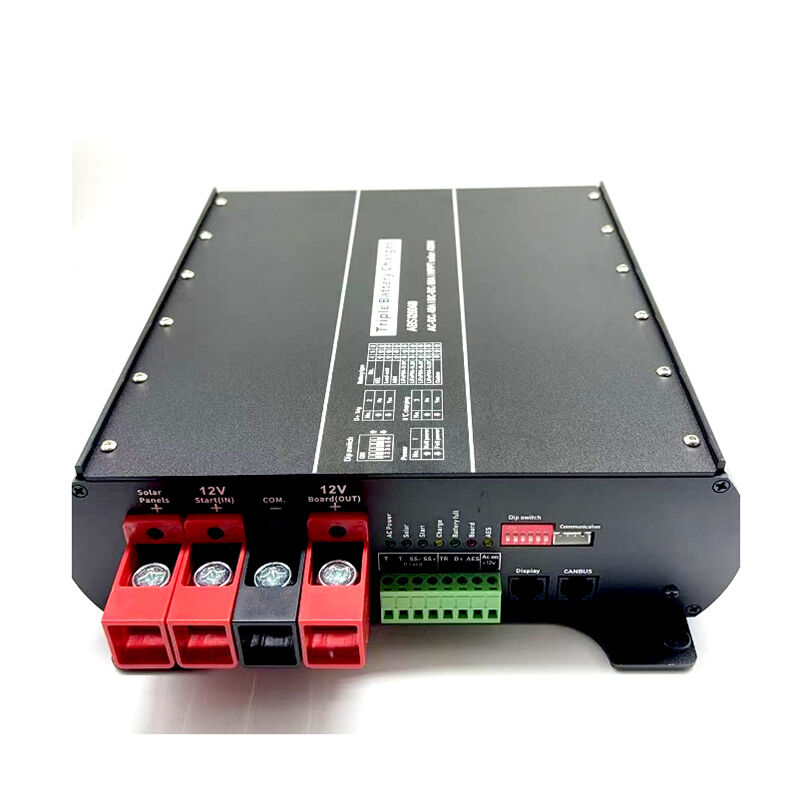

DC Battery Charger with integrated safety instructions emphasizing correct battery type selection and proper ventilation
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | Oxiang /OEM |
| Certification: | CE.RoHS,FCC |
| Model Number: | B2B1290 |
|
Detail Information |
|||
| Max Input Power: | 910W | Temperature Compensation: | -3mv/℃/2V |
|---|---|---|---|
| Starter Battery Type: | Lead-acid | Temperature Sensor: | Optional |
| Output: | 24v | Working Temperature: | -20℃~+60℃ |
| Battery Capacity: | 30A | Charging Port: | 1 Port |
| Mppt Solar: | 12V 90A | System Voltage: | 12V/ 24V Auto Recognition |
| Voltage: | 24V-12V | Waterproof: | IP66 |
| Start Battery Voltage: | 12V | Battery Type Compatibility: | Lead Acid, AGM, Gel, Lithium |
| Board Battery: | 12V | ||
| Highlight: | Low Power WIFI Video Doorbell,PIR Detection WIFI Video Doorbell,Smart Home Video Doorbell FHD 1080P |
||
Product Description
INSTALLATION ATTENTION
• Do not expose the DC/DC charge tr o rain or snow.
• Do not use the DC/DC charger if it has received a sharp blow, been dropped,
has cracks or openings in the case, or is damaged in any other way.
• Do not install the charger near a heat source.
• This charger should not be installed in an airtight or poorly ventilated area.
• Do not attempt to open the DC/DC charger. There are no user serviceable parts
except for user replaceable fuses.
• Do not use the DC/DC charger with damaged cables.
• It is strictly forbidden to disassemble the charger and/or modify the housing in
any way.
!
CONNECTIONS ATTENTION
•
• It is important to choose the correct battery type, a wrong choice can cause irreversible
damage, The LITHIUM charging cycle is only compatible with LiFePo4 batteries with
integrated BMS (Battery Management System).
Maintenance
• If necessary, the fuses must be replaced by identical products.
• This charger cannot be disassembled and the electronic board is inaccessible.
• Therefore, with the exception of the fuses, all on-site maintenance is prohibited.
• Disconnect the DC power supply before servicing, cleaning or working on
circuits connected to the DC/DC booster.
• Once disconnected, isolate the battery connection terminals.
• It is important to ensure that the area around the battery is well ventilated.
• It is important to ensure that the battery voltage matches the output voltage
• Always use ungrounded batteries. If necessary, the battery grounding connection
should be made last.
Want to Know more details about this product
