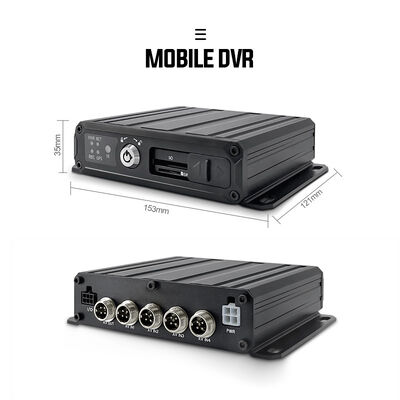

8CH 4G GPS WiFi HDD SSD MDVR RS233 RS485 LAN(RJ45) Live Talk System
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM/ODM |
| Certification: | CE, ROHS FCC |
| Model Number: | MD268 |
| Document: | MD214-4CH 4G SD card Mobile...n.docx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Gift Box Size:16*15*7.5cm |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000/pcs/month |
|
Detail Information |
|||
| Screen Size: | 2.4inch LCD Display | Screen Resolution: | 320*240 RGB |
|---|---|---|---|
| Image Resolution: | 320*240 QVGA | Video Frame Rate: | 15-25FPS |
| Highlight: | 4G GPS WiFi HDD SSD MDVR,RS233 RS485 LAN MDVR |
||
Product Description
features are as follows:
- Die casting structure, industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 8 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
| Item | Parameters | |
| OS | Embedded Linux | |
| System language | Chinese/English/Portuguese/Spanish/Russian/Vietnamese/Mongolian/Thai/Pakistani/French/Korean/Hindi/other(customizable) | |
| Video compression format | H.265/H.264 compression format | |
| OSD | Character superposition function, support time and date, vehicle ID and other information image superposition | |
| GUI | graphic interface | System parameters can be set through external display and remote control operation |
| Video and recording system | Video input | 8CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω |
| Video output | 1CH mixed video output, 1CH VGA output, 1.0Vp-p, 75Ω | |
| Preview function | Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function | |
| Video resolution | 8CH machine supports 1080N/720P/D1/CIF optional, and the maximum can support 4 channels 1080P | |
| Record mode | Default automatic recording, support ACC recording, manual recording, alarm recording, etc. | |
| Audio | Audio input | 8CH,aviation plug |
| Audio output | 1CH,aviation plug | |
| Format | G.711a compression format, Rate 40KB/s | |
| Alarm | I/O input | 8CH I/O inputs. Can be connected to door magnetic sensors, left/right/reverse signals. |
| I/O Output | 2CH I/O output. Can connect external devices such as relays (oil and electricity cut-off), sound and light alarms, etc | |
| Serial Port | RS233 | 2 x RS232 |
| RS485 | 1 x RS485 | |
| Power output | 12V | Power external devices, such as fuel sensors, temperature sensors, etc |
| 5V | Power peripheral devices, such as RFID card readers | |
| Network | 4G | Support built-in 4G function |
| WiFi | Spport WiFi function | |
| Wired | Support wired network | |
| Positioning | Support built-in GPS/BD(GPS/GLONASS) module | |
| USB | Support USB interface. Insert a USB flash drive to backup video or upgrade firmware | |
| Sensor | Support G-SENSOR acceleration sensor | |
| Intercom | SPK interface. Platform and device intercom, or connect speakers | |
| Pulse speed | Optional | |
| Video storage | HDD/SSD | Support 1x2.5inch HDD/SSD, loop recording |
| TF Card | Support 1xTF card, loop recording | |
| Fireproof box | External fireproof box, disaster recovery video. Optional | |
| Video playback | Video search | Search for recording video files by recording time, recording mode, etc. |
| Playback | Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional | |
