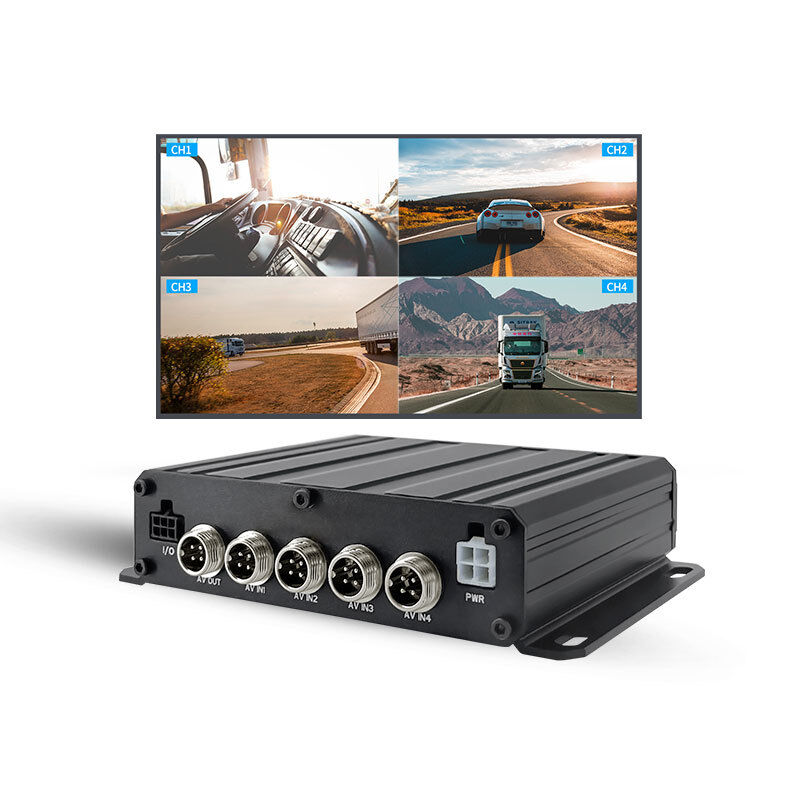

4 Channels Split 7 Inch touch Screen MDVR HDD Fleet Management System
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM/ODM |
| Certification: | CE, ROHS FCC |
| Model Number: | MD204 |
| Document: | MD214-4CH 4G SD card Mobile...n.docx |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Gift Box Size:16*15*7.5cm |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000/pcs/month |
|
Detail Information |
|||
| Screen Resolution: | 320*240 RGB | Screen Size: | 7 Inch LCD Display |
|---|---|---|---|
| Working Humidity: | 20--80%RH | Working Temperature: | 0℃--45℃ |
| Highlight: | 7 Inch touch Screen MDVR,4 Channels MDVR |
||
Product Description
7 Inch Night Vision Wireless Baby Monitor Support TV Display Long Distance Transmission
Specification
| Item | Parameters | |
| OS | Embedded Linux | |
| System language | English, other (free customizable) | |
| Video compression format | H.265/H.264 compression format | |
| OSD | Character superposition function, support time and date, vehicle ID and other information image superposition | |
| GUI | graphic interface | System parameters can be set through external display and remote control operation |
|
Video and recording system |
Video input | 4CH video inputs (aviation plug interface), 1.0Vp-p, 75Ω |
| Video output | 1CH mixed video output (Can be changed to VGA output), 1.0Vp-p, 75Ω | |
| Preview function | Single-channel or multi-screen splicing preview, support manual/event trigger full-screen display function | |
| Video resolution | 4CH machine supports 1080P/720P/D1/CIF optional, and the maximum can support 4 channels 1080P | |
| Record mode | Default automatic recording, support ACC recording, manual recording, alarm recording, etc. | |
|
Audio |
Audio input | 4CH ,aviation plug |
| Audio output | 1CH ,aviation plug | |
| Format | G711a compression format | |
| Alarm input | 4CH alarm inputs, with alarm linkage function | |
| Alarm Output | 1CH output | |
| Positioning | Support built-in GPS/BD(GPS/GLONASS) module | |
| sensor | Support built-in acceleration sensor ( standard no, for optional) | |
| Video storage | SD Card | Maximum support 1x512G SD card, loop recording |
| File format | H.265/H.264 | |
|
Video playback |
Video search | Search for recording video files by recording time, recording mode, etc. |
| Playback | Support multi-channel synchronous playback, support fast forward and fast reverse, support 2, 4, 8, 16 times speed optional | |
| upgrade | Firmware upgrade | Support U Disk Upgrade Firmware |
|
Power |
Management | Adaptive wide power Voltage input, with protection functions such as overload, overvoltage, undervoltage, short circuit, and reverse connection; Support timing power on/off , delayed power on/off function |
| Input voltage | DC:8 ~ 36V | |
| Consumption | Normal work maximum: 5W, standby: 0.5W | |
|
working environment |
temperature | -20℃ ~ 70℃ |
| humidity | 20% ~ 80% | |
|
Safety management |
Password access | Two-level management of user password and administrator password |
| Other | Size: | 153(W) x35(H) x121(L) mm |
Features:
The detailed features are as follows:
Industrial design, stable and reliable, easy to install
Video adopts the international mainstream H.265/H.264 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels of 1080P. high compression ratio , clear image, and Use small disk space .
Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
Support 4 channels of video and audio input, frame rate and image quality are adjustable
Support single SD card Max 512G large capacity recording
The video content has the power-off protection function, and the video will be automatically restored when power recovery
Support video loss alarm function
Independent delay Power shutdown , can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
Support MDVPlayer and standard players, provide playback, analysis, management and other functions
Support Firmware upgrade via U disk
Choose GPS function
![]()
![]()
![]()
![]()
