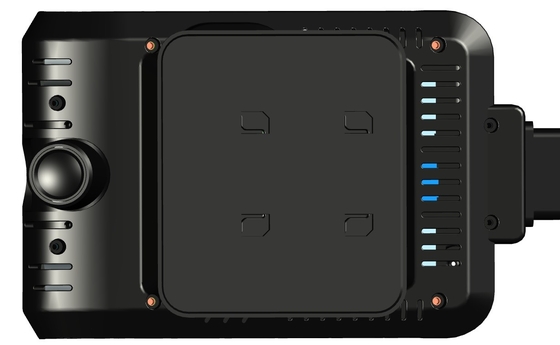

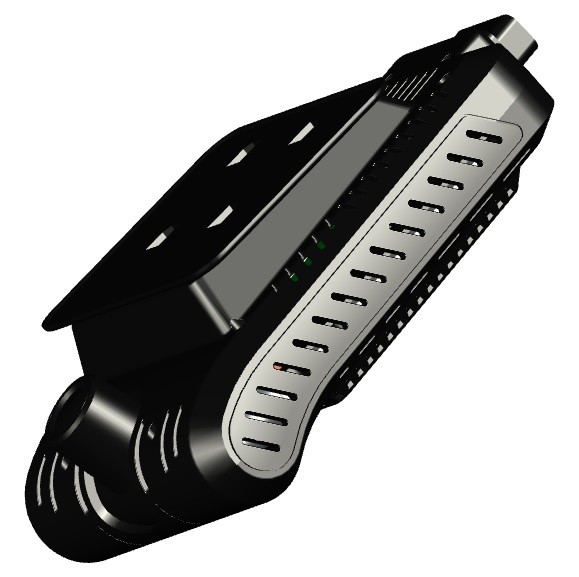

1080P 4G Dash Cameras Quadruple ADAS DSM BSD Car Night Vision Blackbox Video Recorder
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM/ODM |
| Certification: | CE, Rohs, FCC |
| Model Number: | OX-ZP907 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Gift Box Size：19.7*13.2*10.5cm Gift Box Weight:0.95kg |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000PCS/Month |
|
Detail Information |
|||
| CPU: | ARM Cortex CA9 Binuclear @1.4GHz,Total Coding Resources 1080p*60fps | Memory: | 512MB DDR3 |
|---|---|---|---|
| Working Temperature: | -10℃ To +60℃ | Working Relative Temperature: | 20% To 80% |
| Equipment Size: | 138mm*85mm*45mm | Net Weight: | 0.3kg |
| Highlight: | 1080P 4G Dash Cameras,DSM BSD 4G Dash Cameras,Car Blackbox Video Recorder |
||
Product Description
1080P 4G Dash camera Quadruple ADAS+DSM+BSD All in One Car blackbox
Specification
| Video Input | Active Pixels: 1920×1080,1080×720,D1,HD1,CIF; H.264&H.265 format |
| 1-ch Built-in CMOS AHD camera,Low illumination 0.01LUX,Angle of view 82° | |
| 3-ch External camera | |
| Video Output | 1-ch CVBS, 1.0Vp-p, 75Ω, Support full screen and 4-ch segmentation |
| Audio input / output | Built-in 1-ch MIC input, Built-in 1-ch speaker output;G.711a format |
| Video recording resolution | 4-ch 1080p*15fps, 720p/D1*30fps,Simultaneous recording of sound and video. |
| G-Sensor | Built-in 3-axis acceleration G-sensor |
| IO | 1-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch Switching value input, |
| Positioning module | Built-in GPS / Beidou Positioning Module |
| 4G | 1 SIM card interface |
| WIFI | 802.11b/g/n,built-in 4G module,TDD-LTE, FDD-LTE |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB |
| USB (Not support) | Reserved interface |
| Upgrade mode | TF card upgrade, FTP remote upgrade |
| AI - ADAS | Lane departure, collision alarm, Distance detection .etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone,Occlusion, Unsafe driving behavior habit detection |
| Input voltage | DC:+10V ～ +36V |
| Power waste | Normal working state ＜ 7.5W (without external equipment) |
| Power off protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
Product Feature
- H.265 & H.264 encoding and decoding,Save storage space and transmission flow；
- Support 4-channel 1080p * 15fps / 2-channel 1080p * 30fps, 4-channel 720p, D1 and other codecs;
- Built in one 1080p camera and external three HD cameras for easy installation;；
- Built in 2CH AI intelligent algorithm, which can support ADAS and DMS functions；
- Built in GPS + Beidou dual-mode precise positioning；
- Support 1 TF card,super capacitor double guarantees the integrity of video files；
- Support 1 SIM card, 4G module can support global frequency band；
- Support WiFi hotspot.
- Support mobile app, client, platform software preview video and parameter configuration；
- Support 2CH IO alarm input and 1CH of RS232；
- Built in speaker and microphone, Support voice intercom between dash camera and platform. TTS voice broadcast;
- One key SOS emergency alarm; Support low-power sleep；
- Special file system to improve disk reading and writing efficiency,More stable video recording；
