Product Details:
Payment & Shipping Terms:
|
| CPU: | ARM Cortex CA9 Binuclear @1.4GHz,Total Coding Resources 1080p*60fps | Memory: | 512MB DDR3 |
|---|---|---|---|
| Positioning Module: | Built-in GPS / Beidou Positioning Module | 4G: | 1 SIM Card Interface |
| Equipment Size: | 138mm*85mm*45mm | Net Weight: | 0.3kg |
| High Light: | 4CH 4G Dash Cameras,ADAS 4G Dash Cameras,DSM Dashcam DVR Recorder |
||

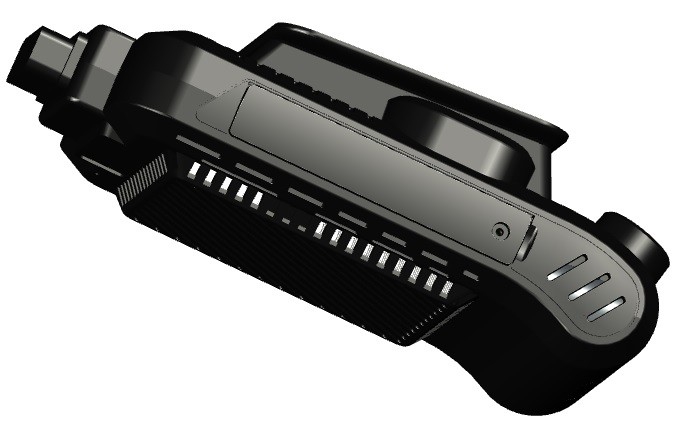

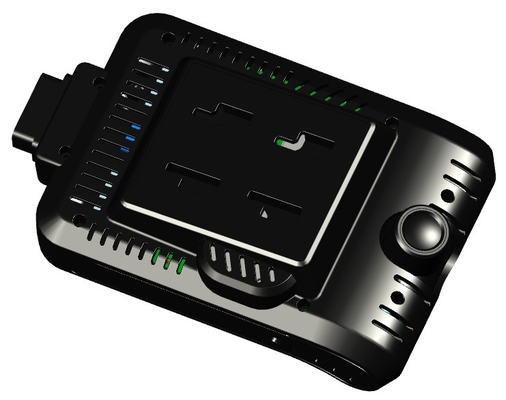

4G Dash Camera 4CH Vehicle Blackbox Adas Dsm All in One Dashcam DVR Recorder
Specification
| CPU | ARM Cortex CA9 Binuclear @1.4GHz,Total coding resources 1080p*60fps |
| Memory | 512MB DDR3 |
| Video Input | Active Pixels: 1920×1080,1080×720,D1,HD1,CIF; H.264&H.265 format |
| 1-ch Built-in CMOS AHD camera,Low illumination 0.01LUX,Angle of view 82° | |
| 3-ch External camera | |
| Video Output | 1-ch CVBS, 1.0Vp-p, 75Ω, Support full screen and 4-ch segmentation |
| Audio input / output | Built-in 1-ch MIC input, Built-in 1-ch speaker output;G.711a format |
| Video recording resolution | 4-ch 1080p*15fps, 720p/D1*30fps,Simultaneous recording of sound and video. |
| G-Sensor | Built-in 3-axis acceleration G-sensor |
| IO | 1-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch Switching value input, |
| Positioning module | Built-in GPS / Beidou Positioning Module |
| 4G | 1 SIM card interface |
| WIFI | 802.11b/g/n,built-in 4G module,TDD-LTE, FDD-LTE |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB |
| USB (Not support) | Reserved interface |
| Upgrade mode | TF card upgrade, FTP remote upgrade |
| AI - ADAS | Lane departure, collision alarm, Distance detection .etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone,Occlusion, Unsafe driving behavior habit detection |
| Input voltage | DC:+10V ～ +36V |
| Power waste | Normal working state ＜ 7.5W (without external equipment) |
| Power off protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
| Working Temperature | -10℃ to +60℃ |
| Working relative temperature | 20% to 80% |
| Equipment size | 138mm*85mm*45mm |
| Net weight | 0.3kg |
Product Feature
1. ADAS advanced driver assistance system
2. DSM Driver Status Analysis System
