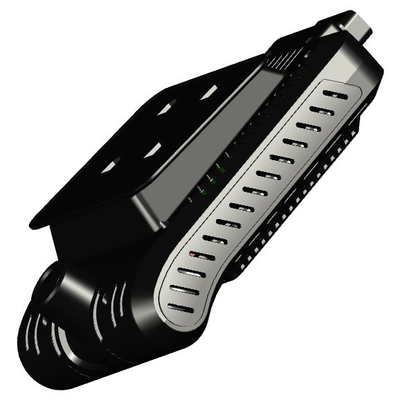

4G Car Dashcam ADAS DSM BSD Advanced Driving Assistance System

4G Car Dashcam ADAS DSM BSD Advanced Driving Assistance System
4G Car Dashcam ADAS DSM BSD Advanced Driving Assistance System
video play

Large Image :  4G Car Dashcam ADAS DSM BSD Advanced Driving Assistance System

Product Details:
Place of Origin: China
Brand Name: Oxiang
Certification: CE ROHS FCC
Model Number: OX-ZP904
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Neutral
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union,
Supply Ability: 15000pcs/month
Detailed Product Description
Type: Dual Camera Resolution: 1920*1080
Lens: 140 Degree Main Chip: Hi3520dV400
Feature: ADAS And DMS Algothim Platform: CMSV6
High Light:

ADAS 4G Car Dashcam


CMSV6 Platform 4G Car Dashcam


DSM 4G Dash Cameras

4G Dash Camera Front and Rear Dual Lens Overspeed SOS Collision Alarm ASAD DSM BSD All in one


General Setting
Main Chip Hi3520dV400
Outside Camera

2.0MP sensor,150°wide angle

Support wide dynamic (WDR)

Inside Camera

2.0MO sensor,150°wide angle

Infrared night vision,the video is clearly visible in the dark environment

Double TF Card Support double TF card,32GB/64GB/128G/256G
Positioning Beidou/GPS Dual-mode high-precision positioning module
Gryo Collision alarm,vibration alarm
microphone and speaker Built-in
ADAS algorithm (Optional) Advanced driving assistance system:lane deviation alarm,forward collision alarm,and closer distance alarm
DSM algorithm + DSM Camera  Driver behavior analysis: head down,call,smoke, look around,yawn, close eyes,no face detected,cover the camera
Face Recognition algorithm (Optional) Identify the driver and report to the platform
Video Parameters
Video Resolution 1080P/720P/D1
Video Format H265/H264
File format Special file system,support asf file exported
Network Parameters

Support all networks in China Mainland:China Mobile,China Unicom,China Telecom,IoT card.

Worldwide network in oversea.

WIFI 2.4G GHZ,Support WIFI STA/AP WIFI,Support mobile preview
External Connection
VCC Power supply 9V-36V
GND Ground
ACC Ignition detection,control power on or off
SOS Key Emergency button,video upload before and after the police
PTT Key Short press to take pictures,long press to talk
External display CVBS port,Video output
Serial port One set RS232,Support extension
Two external cameras 2 sets of AHD port Camera
USB MINI USB port,Support video data copying,equipment upgrade, mouse operation
One Click to restore settings Support
Dimension(mm) 120*77*55mm
Weight 240g±10g
Working environment
Operation temperature -20℃~+70℃
Operation humidity ≤93%



Dash-Camera for car
