| Gas Detection: | CO，O，H2S，CH4 | Video Format: | MP4 |
|---|---|---|---|
| Measuring Range: | -10 +600degrees | Len Angle: | 120 ° |
| OS: | Android 8.1 System | Monitor: | Data Real-time Upload |
| High Light: | tft firefighter helmet camera,320x240 pxiel firefighter helmet camera,thermal imaging firefighter helmet camera |
||

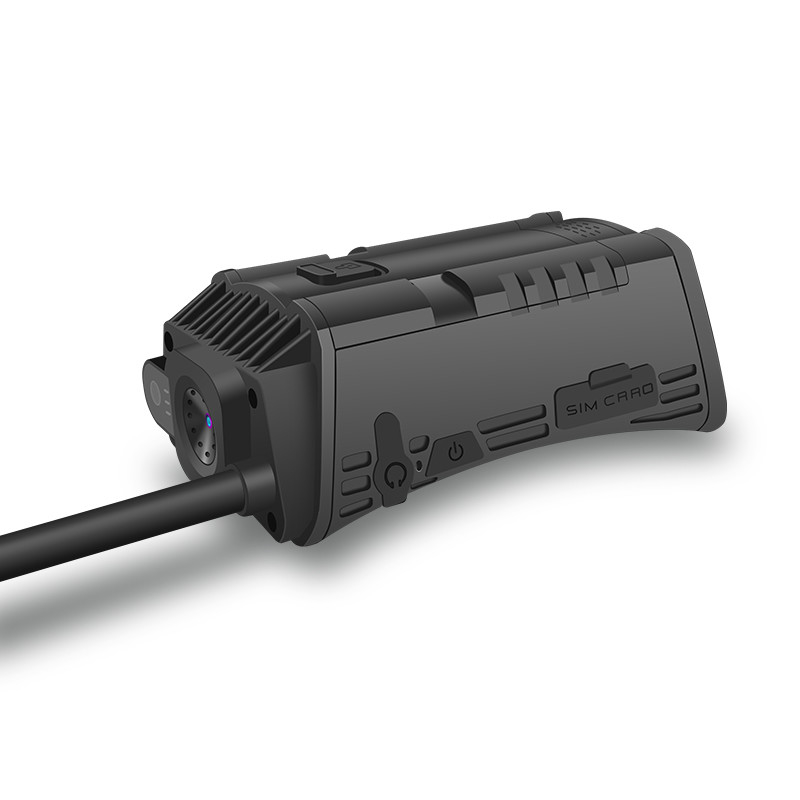

firefighter 4g smart helmet gas detection thermal imaging helmet camera live streaming camera
Specification
|
thermal imaging parameters |
Uncooled vanadium oxide focal plane array |
| Pxiel | 320X240 |
| wide angle | 45-50 Degree 6.52mm f1.18 Mini Focal Length:0.5 Meter |
| Thermal sensitivity | 0.1 Celsius |
| Frame Rate | 9Hz Wavelength range :8-14um |
| Measuring range | -10 +600degrees |
| Measuring accuracy | 0.4-- 0.5°C (32--42°C),100°C以上 +-1% |
| Display | 4 inch TFT |
| Gas Detection | CO,O,H2S,CH4 |
| Operation System | OS:Android 8.1 system |
| CPU | MTK6739 Quad-core ARM@Cortex-A53 MPCore |
| Video Interface | mipi |
| Data Interface | USB2.0 micro |
| Power interface | TYPEC |
Features

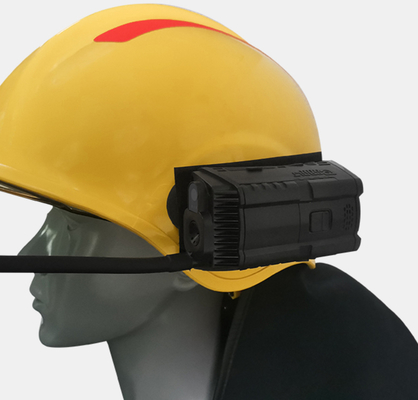

1. Install directly on Fire helmet. According to the size of the fire helmet shell. Combination of arc tailored
2. The gas detection results will be displayed at the bottom of the screen regardless of whether it is under the optical lens or the thermal imaging lens.
3. Real-time display of the thermal imaging pictures taken by the multi-firefighter intelligent assistance system, real time display of the concentration of harmful gases in the environment, and precise identification of the temperature
(presented by the highest, lowest, and central three point temperature.)
