Product Details:
Payment & Shipping Terms:
|
| Gas Detection: | CO，O，H2S，CH4 | Video Format: | MP4 |
|---|---|---|---|
| Measuring Range: | -10 +600degrees | Len Angle: | 120 ° |
| OS: | Android 8.1 System | Monitor: | Data Real-time Upload |
| High Light: | 4G WIFI helmet mounted camera,BT4.0 helmet mounted camera,Thermal Imaging safety helmet hard hat |
||

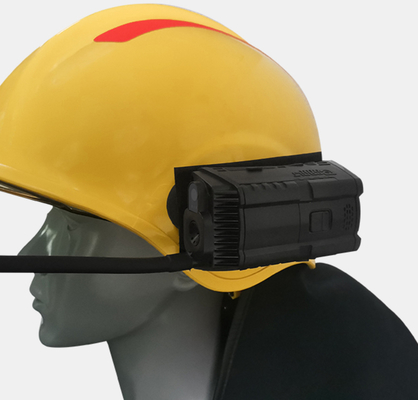

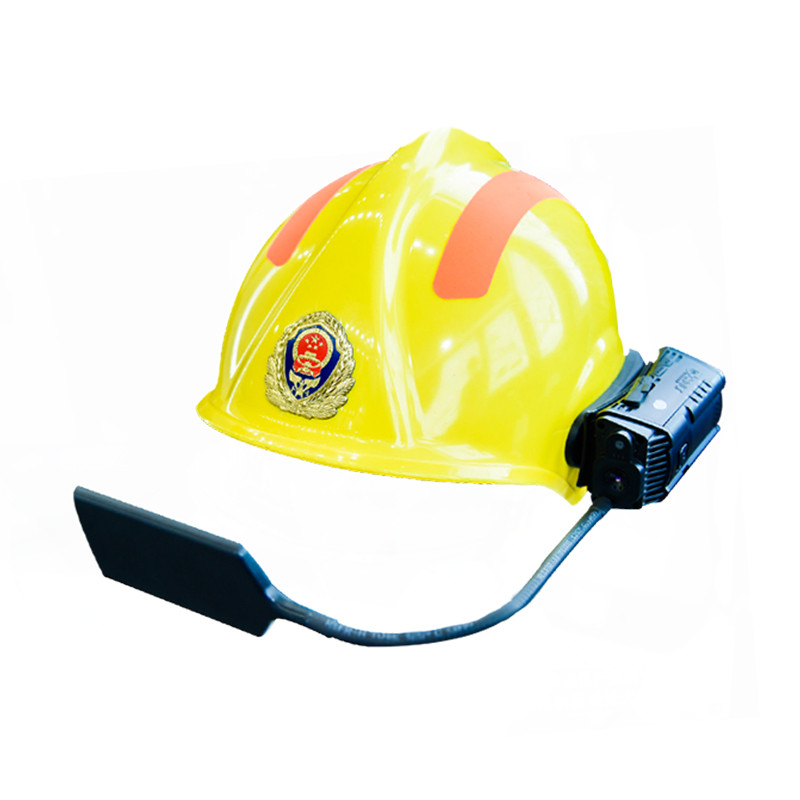

4G WIFI Helmet-Mounted Thermal Imaging Camera Gas Detection For Fire Rescue
Specification
thermal imaging parameters | Uncooled vanadium oxide focal plane array |
| Pxiel | 320X240 |
| wide angle | 45-50 Degree 6.52mm f1.18 Mini Focal Length:0.5 Meter |
| Thermal sensitivity | 0.1 Celsius |
| Frame Rate | 9Hz Wavelength range :8-14um |
| Measuring range | -10 +600degrees |
| Measuring accuracy | 0.4-- 0.5°C (32--42°C),100°C以上 +-1% |
| Display | 4 inch TFT |
| Gas Detection | CO,O,H2S,CH4 |
| Operation System | OS:Android 8.1 system |
| CPU | MTK6739 Quad-core ARM@Cortex-A53 MPCore |
| Video Interface | mipi |
| Data Interface | USB2.0 micro |
| Power interface | TYPEC |
Features
1. 4G/GPS/PTT Themal imaging system and 3 gases detection (CO, H2S, 0)
On left side of hemlet. No need extra fixed tools. Perfect fit head skull outline
2. The gas detection results will be displayed at the bottom of the screen regardless of whether it is under the optical lens or the thermal imaging lens.
3. Real- time display of thermal imaging pictures taken by the intelligent assistance system for multiple firefighters and accurately mark the temperature (presented by the highest, lowest, and center three- point temperatur
