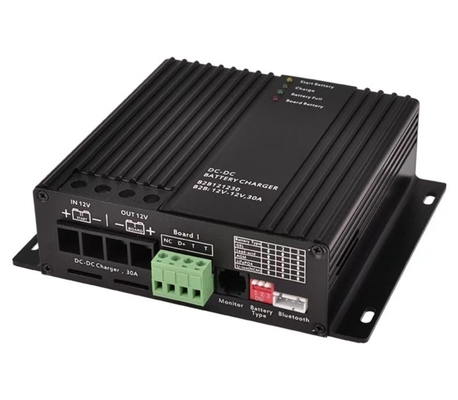

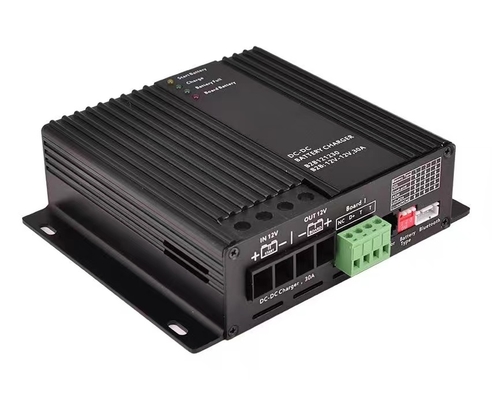

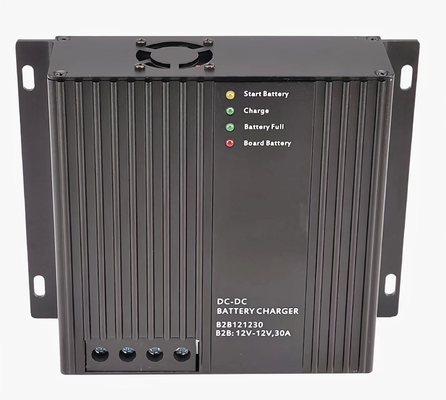

FCC 30A DC DC Battery Charger For Lithium Gel Lead Acid AGM Sealed LifePO4 Battery
Product Details:
| Place of Origin: | china |
| Brand Name: | oxiang |
| Certification: | CE FCC RoHS |
| Model Number: | B2B1230 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Material: | Aluminm | Volt: | 12V |
|---|---|---|---|
| Current: | 30A | Battery: | Lithium Gel Agm Lead-acid |
| Application: | RV Boat | Type: | Lead Acid & MH-Ni Battery Charger,2 COLOR LED Indicator Tonometer Charger |
| Use: | Cycle / Sled / ATV / Lawn / UTV / Tractor / Car / Truck / RV / Boat | ||
| Highlight: | RV boat DC DC Battery Charger,FCC DC DC Battery Charger |
||
Product Description
| model | B2B1230 |
| main battery | 12V |
| main battery type | GEL,Sealed,Flooded/AGM, LifePO4, Lithium-ion (NCM) |
| vehicle start battery | 12v |
| Start battery type | Lead-acid |
| DC-DC Max.Charging current | 30A |
| Self -consumption current | 18mA |
| Dimension | 147*118*14mm |
| weight | 600G |

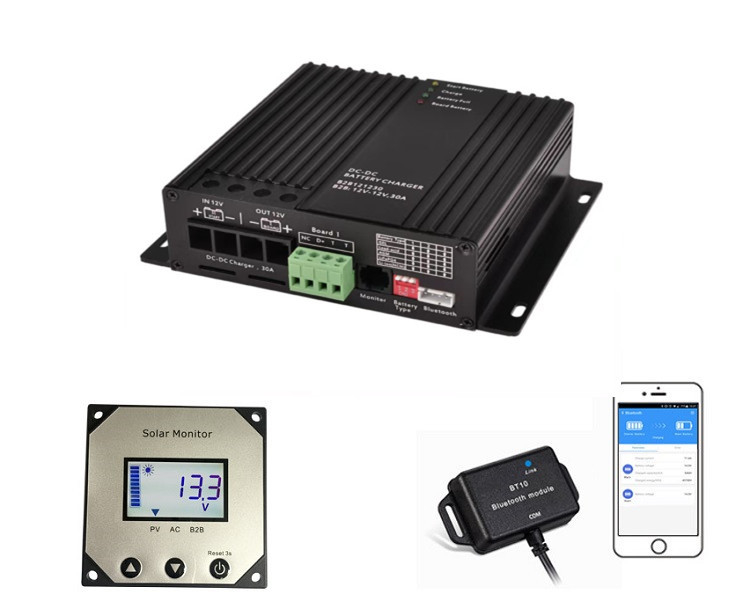

| Accessories | Monitor(MT-2) Bluetooth Dongle (BT10) Temperature Sensor (TRS) |
B2B Operation :mobile operation from dynamo and starter battery (Battery to Battery):
it refers to charging the main battery through dynamo and starter battery, .If it is not used in the Vehicle , you can also use
one battery (12V) to charge another
1. .The efficient charging converter (booster) allows full charging of the board battery during
2. . It increases/reduces the voltage to the level, which is required for precise charging of the board battery with the optimum
characteristic line of
3. .The simultaneously supplied 12 V consumers are protected against overvoltage and voltage
Further Characteristics of the Unit
* Theoutput voltage is stabilized, free of peaks, smoothed and
* Galvanic isolation between input andoutput:
* Noovervoltage at the output and thus protection of the consumer if the ground line is
* Clean,undisturbed mass ratios, even with long supply
* Stableoperating voltage on site in mobile operation, g. Containers, trailers, roll containers etc.
* Filteringand suppression of disturbances on the input to the output
* Fullyautomatic continuous operation: The DC-DC converter can constantly work with the battery
* Surveillance-free operation: multiple protection against overload, overheating, overvoltage, shortcircuit, Misconduct and deep
discharge of the battery through electronic regulation to complete
Switch off by built-in safety switch.
