| Gas Detection: | CO，O，H2S，CH4 | Video Format: | MP4 |
|---|---|---|---|
| Measuring Range: | -10 +600degrees | Len Angle: | 120 ° |
| OS: | Android 8.1 System | Monitor: | Data Real-time Upload |
| High Light: | Helmet Mounted Thermal Imaging Camera,4G Helmet Mounted Camera,4G Helmet Thermal Imaging Camera |
||

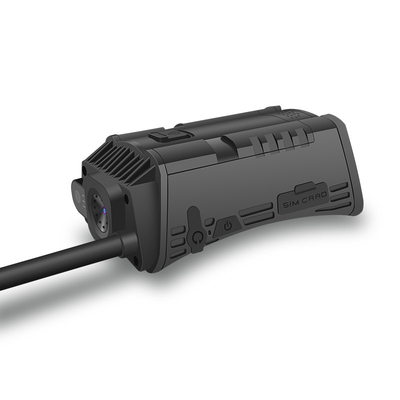

4G Helmet-mounted Live Streaming Thermal Imaging Camera for Fire Rescue with CO,H2S,O Gas Detection
Specification
| Gas Detection | CO,O2,H2S ,CH4 (any three gases) |
| System | Operation system:Android 8.1 |
| Processor:MTK6739 Quad-core ARM@Cortex-A53 MPCore | |
| Visible Optics camera | Foucus range:0.5 Meters----Infinty |
| Angle of camera:120 ° | |
| Photo: 16MP JPEG format | |
| Other details | Distance of night vision:The human faces can be seen at 10 Meters in a totally black environment |
| Working time: standby more than 25h, camera work more than 5h | |
| Waterproof:IP66 | |
| Lithium battery :3600mAh | |
| Storage capacity | Support 16G/32G/64G/128G(With Standard 32GB TF Card) |
| Video coding resolution | 1080P/720P mp4 Format |
| Video FPS | 1080P@30fps /720@30fps |
| Video bitrate | 256kbps-8Mbps |
| WiFi | Support 802.11b/g protocol,2.4GHZ |
| 4G function | FDD:B1/B3 /B5/B8 /B4 /B7; TDD:B38/B39/B40/B41 |
| Bluetooth | BT4.0 |
| Dimension/weight | (L*W*H) 115*60*45mm/About 180g (Helmet not included) |
Features
1. 4G/GPS/PTT Themal imaging system and 3 gases detection (CO, H2S, 0)
On left side of hemlet. No need extra fixed tools. Perfect fit head skull outline
2. The gas detection results will be displayed at the bottom of the screen regardless of whether it is under the optical lens or the thermal imaging lens.
3. When the fire assistant detects the concentration of toxic gas is greater than the state regulation
Concentration or manually set alarm concentration, Will push alarm signal to multi-function
platform. .Assist the command and dispatch personnel to understand the scene environment clearly

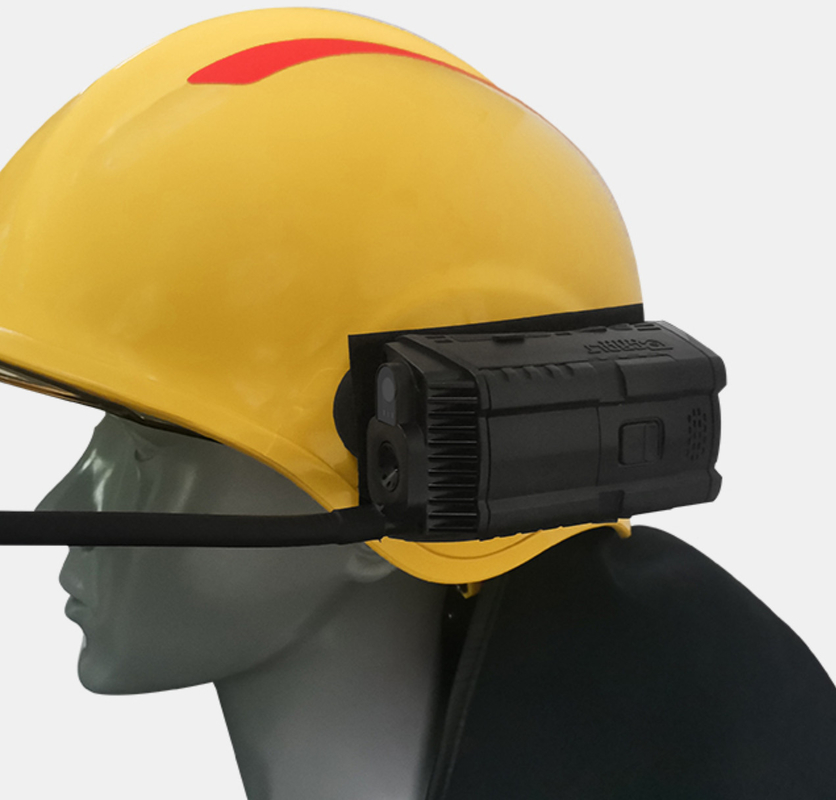

4. Mount on left side of hemlet. No need extra fixed tools. Perfect fit head skull outline
