4G Dashboard Dual Camera AI ADAS DMS Driver Face Recognition with H.264/H.265 Video Compression
Product Details:
| Place of Origin: | china |
| Brand Name: | oxiang |
| Certification: | ce fcc |
| Model Number: | ZP912 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Memory: | 512GB | Operate System: | Linux |
|---|---|---|---|
| CPU: | ARM Dual-Core Processor@1.5GHz | DDR: | 4GB |
| Flash: | 2GB | Video Formate: | PAL /NTSC |
| Video Compression: | H.264/H.265 | Video Resolution: | 2K、1080P、720P、D1 |
| Video Quality: | Level 1 To 8, Best Level 1, Lowest Level 8 | ||
| Highlight: | AI ADAS 4G Dashboard Camera,H.264/H.265 4G Dashboard Camera,4G Dashboard Dual Camera |
||
Product Description

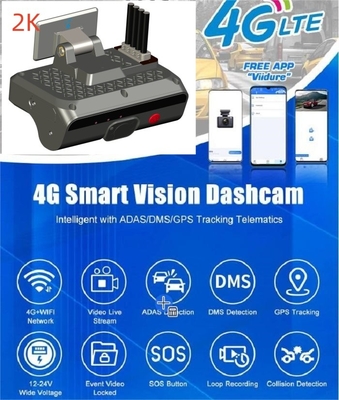

4-channel AI Dashcam 2K HD
二,Product Features
- H.264 or H.265 codec, and the maximum coding resolution is 1080P 150 frames;
- Built-in 2K camera and 1080P camera , expand 2-channel AHD cameras, support 1080P or 720P;
- Built in 2 MIC audio inputs and 1 audio output；
- Support two-way voice intercom between devices and platforms；
- Support phone calls；
- Supports 1 TF card with a maximum capacity of 512GB；
- Supports 4G communication, module can support global frequency bands, 1 SIM card interface；
- Support built-in GPS+Beidou dual-mode precise positioning, built-in antenna；
- Support built-in WIFI;
- Supports two IO alarm inputs, one SOS button, and one low output alarm；
- Supports two RS232 interfaces；
- Support 1-WIRE interface；
- Support multiple low-power sleep modes, Support vibration wake-up, SMS and phone wake-up, pedestrian approach wake-up
- Support full-time sentinel mode, millimeter wave radar will wake up the recorder when someone approaches the vehicle;
- Built in multi-channel AI intelligent algorithms, 1.5T NPU, can support DMS ADAS,BSD, Identity recognition, seat belt detection and other functions;；
- Support preview videos and parameter configuration for mobile apps, clients, and platform software；
- Large capacity supercapacitors have longer delay times, providing dual protection for the integrity of video files；
Dedicated file system to improve disk read and write efficiency and ensure more stable video recording;
Product Specification Parameters
| ITEM | Technical Specifications | |
| System | Language | Chinese/English |
| Operate system | Linux | |
| Menu | WEB | |
| Processor | CPU | ARM Dual-Core processor@1.5GHz |
| DDR | 4Gb | |
| Flash | 2Gb | |

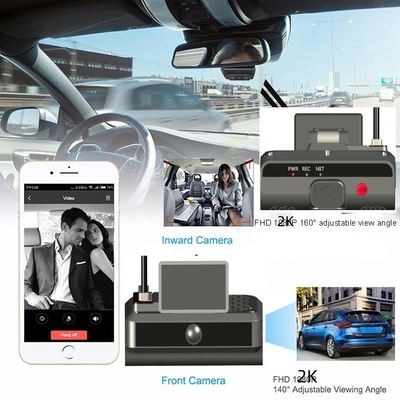

| Video recording system | Video input | Built-in 2K sensor(front),angle(130°), support WDR |
| Built-in AHD Camera(1080P/Interior),angle(135°),support IR-CUT and IR | ||
| Support external 2-channel AHD cameras(1080P/720P) | ||
| Video format | PAL /NTSC | |
| Video compression | H.264/H.265 | |
| Video Resolution | 2K,1080P,720P,D1 | |
| Video quality | Level 1 to 8, best level 1, lowest level 8 | |
| Video rate |
CIF: 256Kbps ~ 1.5Mbps, Multi level image quality HD1: 600Kbps ~ 2.5Mbps, Multi level image quality D1: 800Kbps ~ 3Mbps, Multi level image quality 720P: 1Mbps-4Mbps, Multi level image quality 1080P: 1Mbps~8Mbps, Multi level image quality 2K:2Mbps~16Mbps, Multi level image quality |
|
