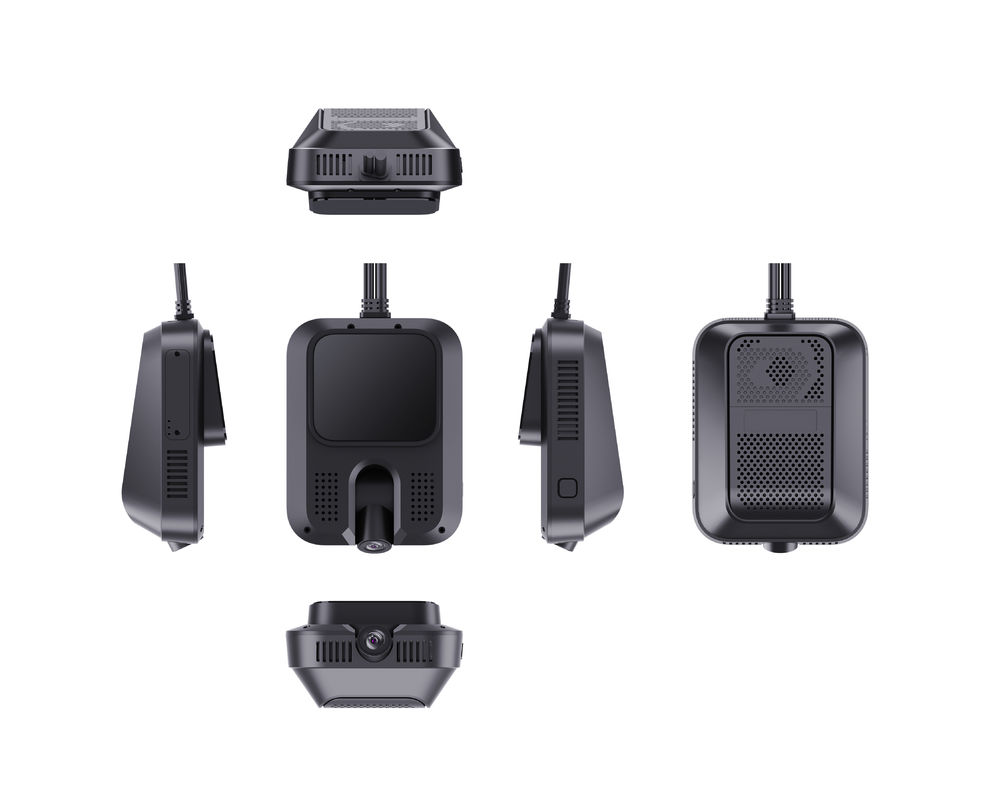

AI Vehicle Dashcam DVR Dashboard ASAS DMS Advanced Driving Monitor System
Product Details:
| Place of Origin: | china |
| Brand Name: | oxiang |
| Certification: | ce fcc |
| Model Number: | ZP701 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Memory: | 512GB | Operate System: | Linux |
|---|---|---|---|
| CPU: | ARM Dual-Core Processor@1.5GHz | DDR: | 4GB |
| Flash: | 2GB | Video Formate: | PAL /NTSC |
| Video Compression: | H.264/H.265 | Video Resolution: | 2K、1080P、720P、D1 |
| Video Quality: | Level 1 To 8, Best Level 1, Lowest Level 8 | ||
Product Description

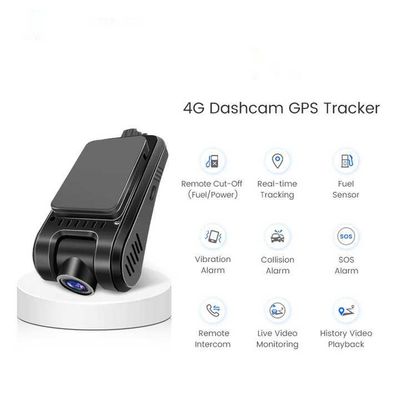

4-channel AI Dashcam 2K HD
1.Product features
Using H.264 or H.265 encoding and decoding;
Front (built-in) 1 channel 1080P
Supports TF cards for storage
Support 1 SOS emergency alarm button;
Support 1 channel of I/O alarm output;
Built in functions such as 4G, WiFi;
Support BD/GPS/GLONASS module；
Built in 3W speaker and microphone, supporting bidirectional voice intercom between devices and platforms;

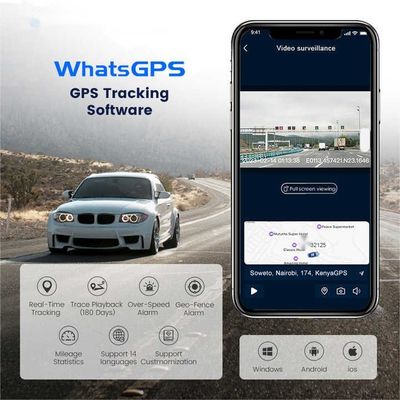

Support mobile apps and platform software to preview videos and configure parameters;
1T computing power
Optional 1-channel speed sensor.
Dedicated file system to improve disk read and write efficiency and ensure more stable video recording;
Product Specification Parameters
| CPU | GK7202 | ARM Cortex-A7@900MHz |
| System | OS | Linux |
| Storage | RAM | DDR2 512Mb |
| ROM | SPI NOR Flash 128Mb | |
| TF Card | Single card (maximum support 256GB) | |
| functional interface | DVR camera | MIPI DVR,1080P/25fps or 2K/25fps |
| 4G | USB0 HOST,CAT1,FPC antenna | |
| EG800K-EU: B1/ 3/ 5/ 7/ 8/ 20/ 28 | ||
| EG800K-LA: B2/ 3/ 4/ 5/ 7/ 8/ 28/ 66 | ||
| GPS/BD | UART,3.3V,Built in ceramic antenna | |
| WIFI | Built in SDIO module, 2.4G, WIFI: IEEE802.11 b/g/n, FPC antenna (reserved onboard antenna) | |
| Gravity sensor | I2C interface, 3-axis SC7A20E/DS215S | |
| Gyroscope | I2C interface, 6-axis BMI160, reserved design | |
| Speaker | 3W/4 Ω, socket with 1.25mm spacing | |
| MIC | Electret MIC, socket with 1.25mm spacing | |
| IO input | 2 ch (ACC, Input) | |
| IO output | 1ch(Relay) | |
| RS232 | 1ch,Reserved design | |
| LED light | 1-way onboard (working status) | |
| Watchdog | hardware reset | |
| Sleep wake-up | vibration, SOS, 4G wake-up | |
| RTC | internal clock | |
| Battery | Farad Capacitor, 1.25m | |
| Power input | 12V(DC9~16V) |
Want to Know more details about this product
