ADAS_DMS_BSD Dashcam 2CH 3CH 4CH
Product Details:
| Place of Origin: | china |
| Brand Name: | oxiang |
| Certification: | ce fcc |
| Model Number: | ZP252 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | package |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Memory: | 512GB | Operate System: | Linux |
|---|---|---|---|
| CPU: | ARM Dual-Core Processor@1.5GHz | DDR: | 4GB |
| Flash: | 2GB | Video Formate: | PAL /NTSC |
| Video Compression: | H.264/H.265 | Video Resolution: | 2K、1080P、720P、D1 |
| Video Quality: | Level 1 To 8, Best Level 1, Lowest Level 8 | ||
Product Description

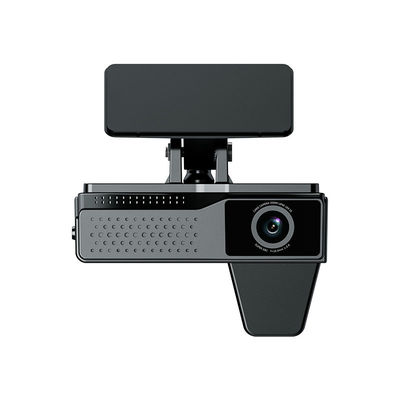

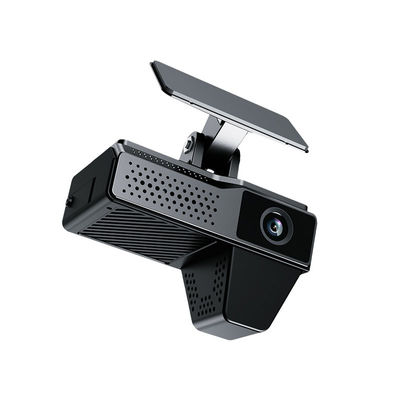

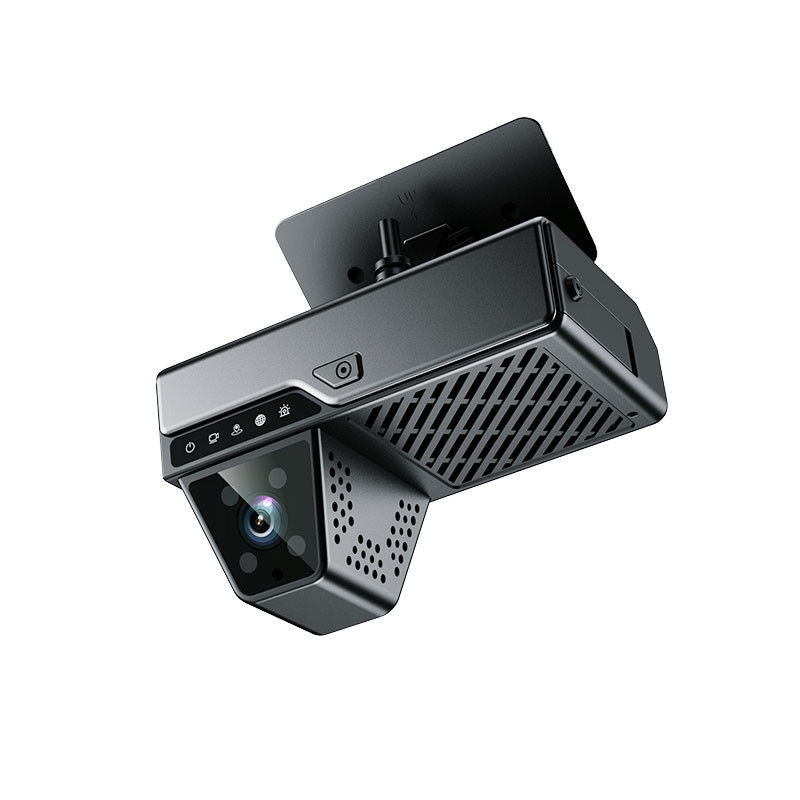

4-channel AI Dashcam 2K HD
1.Product features
Using H.264 or H.265 encoding and decoding;
Front (built-in) 1 channel 1080P+Rear (built-in) 1 channel 720P
Supports 2 TF cards for storage, with a maximum capacity of 1TB per card;
Support 1 SOS emergency alarm button;
Support 1 channel of I/O alarm output;
Support 3 I/O alarm inputs;
Built in functions such as 4G, WiFi;
Support BD/GPS/GLONASS module；
Built in 3W speaker and microphone, supporting bidirectional voice intercom between devices and platforms;
Support mobile apps and platform software to preview videos and configure parameters;
1T computing power, standard AI intelligent algorithms: ADAS, DMS, driver facial recognition;
Supports 2 RS232 channels, 1x5V and 1x12V output;
Optional 1-channel speed sensor.
Dedicated file system to improve disk read and write efficiency and ensure more stable video recording;
Product Specification Parameters
| ITEM | Parameters | |
| System | Language | Chinese/English/Portuguese/Spanish/Russian/Vietnamese/Mongolian/Thai/Pakistani/French/Korean/Hindi |
| Operating system | Linux | |
| Menu | Mobile app: CMSV7, UVIEW | |
| Processor | CPU | ARM Dual-Core processor@1.2GHz,1.0 TOPS computing power |
| Memory | Built in DDR 2Gb | |
| Flash | 2Gb | |
| Video | Video Input | Front (built-in) 1080p, D:125 ° H:106 ° V:58° |
| Rear (built-in) 720p, D:148° H:122° V:63° | ||
| Format | H.264/H.265 | |
| Resolution | 1080P, 720P, D1 optional | |
| Quality | Levels 1 to 4 | |
| Record Mode | Default boot recording, supporting ignition recording, alarm recording, etc | |
| Audio | Audio Input | 1 channel audio with built-in digital MIC |
| Audio output | 1 channel, built-in power amplifier, built-in 3W speaker with sound chamber | |
| Format | G. 711A | |
| 4G | Built in 4G, TDD-LTE, FDD-LTE | |
| WiFi | Built in WiFi | |
| GPS | Support BD/GPS/GLONASS module | |
| G-Sensor | Built in accelerometer | |
| SOS alarm button | Support | |
| Alarm In | Supports 3 alarm inputs | |
| Alarm output | Supports 1 channel of alarm output | |
| Power output | Supports 1 channel of 5V output and 1 channel of 12V output | |
| Serial port | Supports 2-channel RS232. Can be connected to oil level sensors, RFID card readers, alcohol sensors, etc | |
| Speed sensor | Optional 1-channel speed sensor | |
| Port | TF Card | Supports 1 TF cards, with a maximum support of 1TB per card |
| Upgrade | Support TF card upgrade and FTP remote automatic upgrade | |
| USB Port | Type-c | |
| SIM Card | Supports 1 Nano SIM card | |
| AI algorithm | ADAS | FCW, LDW, HMW, PCW |
| DSM | Smoking, making phone calls, yawning, dozing, distracted, driver not detected, blocking cameras, sunglasses identification | |
| FR | Driver facial recognition | |
| Power | Power management | Adaptive broadband power input with protection functions such as overload, undervoltage, short circuit, and reverse connection; Supports timed on/off and delayed shutdown functions. |
| Input voltage | DC:+9V ~ +36V | |
| Consumption | Normal working state ＜ 5W (without peripherals) | |
