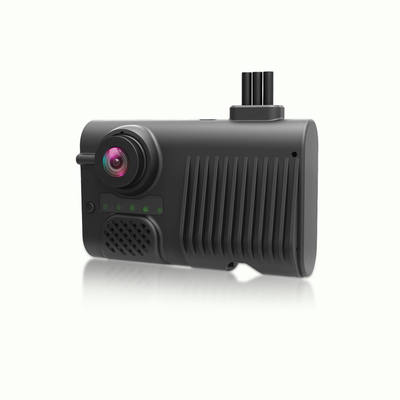

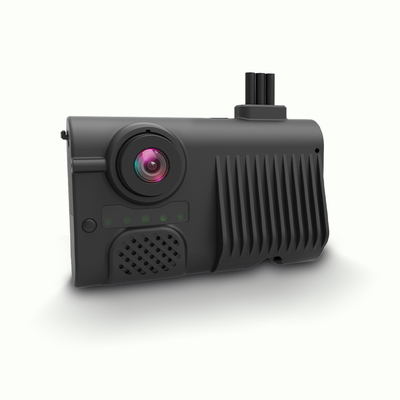

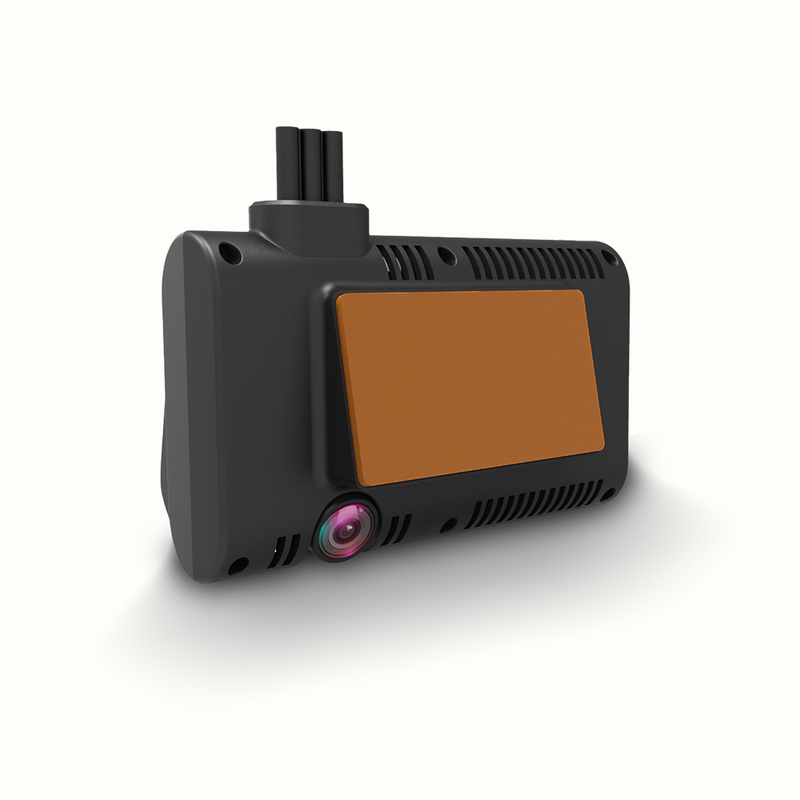

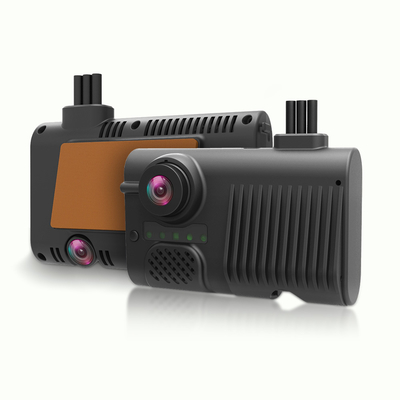

1080P Dual Lens Vehicle DVR with 4G GPS and ADAS
Product Details:
| Place of Origin: | China |
| Brand Name: | 4G DashCam |
| Certification: | CE FCC ROHS |
| Model Number: | ZP221 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 180 |
| Packaging Details: | gift box |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | Strong |
|
Detail Information |
|||
| Size: | 3.5 X 1.6 X 2.3 Inches | Night Vision: | Yes |
|---|---|---|---|
| WiFi: | Yes | Camera Type: | 4G Dash Camera |
| G-Sensor: | Yes | GPS: | Yes |
| Memory Card: | Support Up To 128GB | View Angle: | 170° |
| Highlight: | 1080P dual lens dash cam,4G GPS vehicle DVR,ADAS equipped dash camera |
||
Product Description
- Product Features
- Adopting H.264 or H.265 encoding and decoding;
- Front and rear dual camera: front lens 1080P, rear lens 1080P (supporting DMS and ADAS);
- Support 1 TF card storage and 512G capacity;
- Support 1 emergency alarm button;
- Support 1 channel of I/O alarm output;
- Support functions such as 4G and GPS (external Gmouse, TTL);
- Support mobile apps, and platform software to preview videos and configure parameters;
- Built in speaker and microphone, supporting bidirectional voice intercom between device and platform;
- Support AI intelligent algorithm, supporting ADAS, DMS, and driver facial recognition detection
- Built-in WiFi for viewing videos and configuring parameters
- ZP222 supports 2 x RS232, 1 x 5V and 1 x 12V outputs
| Item | Parameters | |
| System | Language | Chinese/English |
| Operating system | Linux | |
| Interface | Web or mobile app | |
| Processor | CPU | ARM Dual-Core processor@1.5GHz |
| Memory | DDR 2Gb | |
| Flash | 2Gb | |
| Video/Record | Video input | Front 1080P, horizontal 105 °, vertical 62 °; Rear 1080P, horizontal 122 °, vertical 63 °. |
| Video format | H.264/H.265 | |
| Resolution | 1080P, 720P, D1 optional | |
| Quality | Available in levels 1-4 | |
| Record Mode | Record on startup | |
| Audio | Audio input | Built-in MIC |
| Audion output | Built-in amplifier, built-in 2W speaker | |
| Audion format | G.711A | |
| 4G | Built in 4G, TDD-LTE, FDD-LTE | |
| WiFi | Built-in WiFi for viewing videos and configuring parameters | |
| GPS | Gmouse GPS | |
| G Sensor | Built-in 3-axis acceleration sensor | |
| SOS | Support | |
| I/O output | Supports 1 I/O alarm output | |
| Serial port | ZP222 supports 2 RS232. Can be connected to oil level sensors, RFID card readers, etc | |
| Upgrade Firmware | Support TF card and FTP firmware upgrade | |
| Port | TF Card | Maximum support for 512G TF card |
| USB | Support | |
| SIM Card | 1 SIM card Port | |
|
AI algorithm (3 options 2) |
ADAS | FCW, LDW, HMW, PCW |
| DSM | Smoking, making phone calls, yawning, dozing, distracted, driver not detected, blocking cameras, sunglasses identification | |
| Face recognition | FR | |
| Power | Management | Adaptive broadband power input with protection functions such as overload, undervoltage, short circuit, and reverse connection. |
| Input voltage | DC:+9V ~ +36V | |
| Consumption | Normal work ＜ 5W (without peripherals) | |
| Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Network/Platform | JT/T808-2013, JT/T808-2019, JT/T1076-2016, JT/T1078-2016 | |
| UVMS, CMSV6 | ||
| Size | 125mm*85mm*45mm | |
