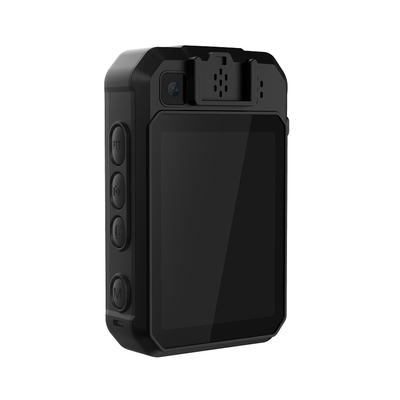

4G wifi Dual Camera 2.4 Inch Touch Screen Body worn camera

Turn on/off

In the shutdown state, short press the "power button" of body worn camera to turn on the device and enter the standby state. In any state, long press the "power key" for 3 seconds to turn off the device; in the startup state, short press the "power button" to turn on/off the screen;

Video recording

After the device turn on, press the "Video button" and the device enters the recording working state. When the voice prompts "start recording", the top red indicator light is on. In the recording state, short press the "Video button" again to stop recording and automatically save the video file. The voice prompt "stop recording" ; long press the "Video button" to turn on the laser light;

After the infrared light is in automatic mode, when shooting in the dark at night, it automatically enters the infrared night vision shooting mode, and the recording screen is black and white;

Audio recording

Press the "Audio button" to start recording under the power-on state, the yellow indicator on the top lights up, the voice prompts "start recording" state, press the "Audio button" to end and save the recording file in the recording state, and the voice prompts "stop recording" state; long Press the "Audio button" to turn on/off the white light;

Photo button

Shortly press the "photo button" to take a picture under the power-on state. In the video recording mode, press the photo button to capture the photo at that time; the infrared menu opens the manual mode, and long press the photo button to switch to the infrared shooting mode;

FN button

Long press the "FN key" for SOS alarm, voice prompt "start alarm", long press again to end the alarm and save the alarm file locally, and voice prompt "end alarm"; (Customizable function button)

In video/audio recording state, short press the "FN button", the voice prompts "important file mark", and meanwhile, the "★" icon will appear in the upper right corner of the screen to mark the current video as important.

M button

Short press to return to the previous menu, long press the red and blue flash to turn on, and long press the red and blue flash again to turn off;

PTT button

Group intercom button, long press to apply for call right, release to release call right

Fingerprint identification button

Custom boot and unlock, identity authentication, business association (optional)

System
Model	ZP404G
SOC Chip	4-core 64-bit 1.5G
System	Android 8.1
ROM/RAM	1G+8G
Camera
Resolution	40 Megapixel
Cmos Sensor	OV4689
Field of View	120 degrees
Camera Lens	Scratch-resistant
Image Format	JPEG
Front camera	Optional
Rear camera	2 million pixels
Video
Compression	H.264
RecordingResolution	1080p,720p,VGA
Dual-stream	Support(2 video streams for local record and remote view)
Display	2.4 inches IPS HD Touchscreen
One-touch ecording	Yes
Audio
Audio	High-quality, built-in microphone
Compression	Opus
Speaker	built-in
Network
Frequency Band	GSM:B2/3/5/8;
	WCDMA:B1/2/5/8;
	TDS:B34/39; FDD_LTE:B1.B3.B5.B7.B8.B28A/B; TDD_LTE:B38/39/40/41
Sim-card Slot	Built-in, Nano-Sim Card
WiFi	Built-in, 802.11 a/b/g/n 2.4G+5GHz
GPS	Built-in, GPS/BDS/GLONASS
G/M-Sensor	Built-in
BT	Bluetooth 4.0 LE
NFC	Optional
Night Vision
Night View	1 white LED, 4 IR LED;
	Identification range up to 3 meters, Detection range up to 10 meters
White balance	Auto White balance
Laser light	Optional
Interface
Shortcut Button	PTT/Power/Video/Audio/ Snapshot/SOS/M keys
SIM	1 x Nano-Sim Card slot
Type-C	1 x Type-c
USB	1 x Micro USB
Battery
Type	Removable
Capacity	3050mAh replaceable battery, 8 hours of continuous work
Continuous Electricity System	Built-in 60 mAh small battery, battery replacement and continuous power
General
Storage Capacity	TF-Card/32GB( scalable to 256GB)
Watermark	OSD
Ingress Protection	IP68
Shock Resistance	2 Meters
Weight	166g
Dimensions	91.8mm*59.8mm*29.3mm
operating temperature	-20ºC~+60ºC
operating humidity	40%--90%
