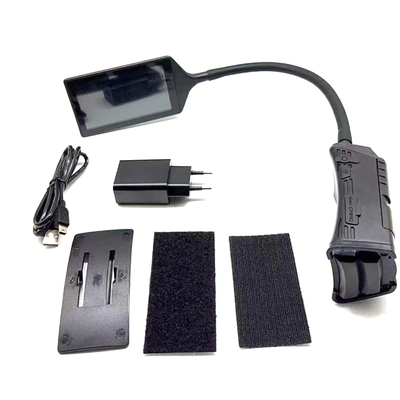

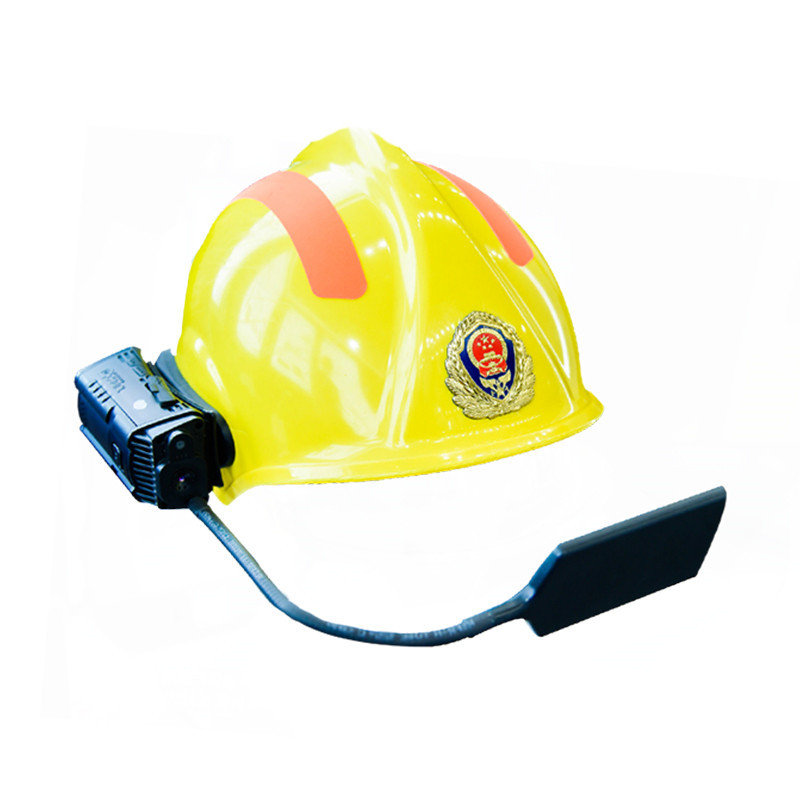

4G Real-Time Helmet Mounted Camera Gas Detectin for Firefighter
Product Details:
| Place of Origin: | China |
| Brand Name: | Oxiang |
| Certification: | CE ROHS FCC |
| Model Number: | OX-ZP650T |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | USD2950-USD3500/unit |
| Packaging Details: | Neutral |
| Delivery Time: | 5-7 working days |
| Supply Ability: | 15000pcs/month |
|
Detail Information |
|||
| GPS: | Live Viewing | Wifi: | 4G/3G |
|---|---|---|---|
| Video: | Video Recording | Ges Detection: | CO,O,H2S,CH4 |
| Angle: | 120 Degree | 4G Upload: | Real-time |
| Highlight: | 4G helmet camera for firefighters,real-time gas detection helmet camera,firefighter safety helmet mounted camera |
||
Product Description
Production description
Product Introduction
The device is a communication device with 4G high-definition image transmission function that our company has dedicated itself to creating. This product uses a high-speed processor and integrates high-definition video, audio, 3G/4G and WIFI wireless communication modules, GPS storage, alarm modules, and intelligent voice modules. It can be widely used in departments such as fire protection, railway transportation, electricity, and mining. Users can timely record the on-site situation, collect information, and standardize their work behavior. And real-time audio and video information transmission, voice intercom, intelligent AI voice and other functions are carried out through 3G/4G, WIFI wireless networks, and a monitoring, scheduling and command platform with complete back-end functions is coordinated to achieve remote scheduling and command functions for outdoor mobile individuals.
| Technical parameter | ||
|
thermal imaging parameters
|
Uncooled vanadium oxide focal plane array | |
| Pxiel:320X240 | ||
| wide angle:45-50 Degree 6.52mm f1.18 Mini Focal Length:0.5 Meter | ||
| Thermal sensitivity :0.1 Celsius | ||
| Frame Rate:9Hz Wavelength range :8-14um | ||
| Measuring range:-10 +600 degrees | ||
| Measuring accuracy:0.4-- 0.5°C (32--42°C),100°C以上 +-1% | ||
| Display:4inch T FT | ||
| Gas Detection | CO,O,H2S,CH4 | |
| Operation System | OS:Android 8.1 system | |
| CPU:MTK6739 Quad-core ARM@Cortex-A53 MPCore | ||
| Interfaces | Video Interface :mipi | |
| Data Interface :USB2.0 micro | ||
| Power interface :TYPEC | ||
| Visible light | Focus Range:0.5 Meter----infinity | |
| Len angle :120 ° | ||
| Picture:16 Mega Pixel JPEG | ||
| Night vision distance :10 Meters visible | ||
| Target indicator :Laser beam,auxiliary positioning | ||
| Working time :Standby 25H above,working 10H above | ||
| Protection level:IP66 | ||
| Battery:high-performance polymer lithium battery with a capacity of up to 3600mAh, ensuring that the device can work for a long time | ||
| 4G upload:real-time upload | ||
| Monitor (data real-time up load) | ||
| Video and audio | Video resolution | 1080P/720P mp4 |
| Frame rate | 1080P@30fps /720@30fps | |
| Video rate | 256kbps-8Mbps | |
| Wifi | WiFi | Support 802.11b/g prototype ,2.4GHZ |
| 3G/4G | (China Mobile,China Unicom ,China Telecom) | |
| Frequency bands | TDD:B38 B39 B40 B41 FDD:B 1 3 5 8 4 7 28B | |
| Bluetooth | BT4.0 | |
| Physical data | weight | Approximately 180g (Helmet not included) |
| Dimension | length/width/height 115X45X60 (helmet not included) | |
| Working temperature | -30°C to +70°C | |
| Management system | Real-time play | real-time 160 data route |
| Beidou | Moving Track is visible | |
| Data upload | Support D1 H.264 data upload | |
| intercom | real-time 4G intercom | |
We are based in Guangdong, China, start from 2011,sell to Western Europe(30.00%),North America(30.00%),Northern Europe(15.00%),Southern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
We have more than 15 years of experience in design and development From 2006 to now , Oxiang has 15 years of Chinese market development, sales, service, accumulation and summary. Our products has covered with most countries in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese
