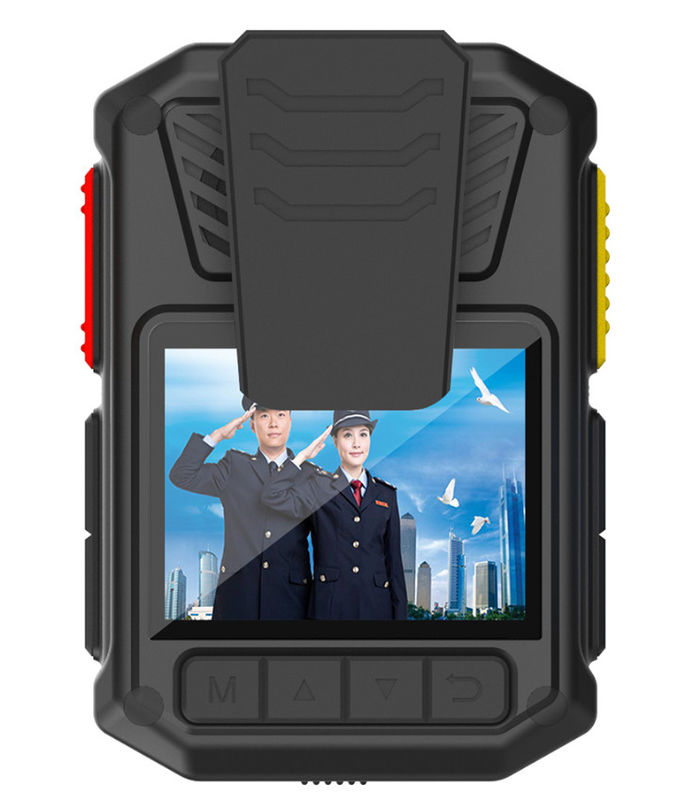

Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning

Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning
Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning
video play

Large Image :  Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning

Product Details:
Place of Origin: Shenzhen,China
Brand Name: OEM/ODM
Certification: CE,ROHS,FCC
Model Number: OX-ZP909G
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Neutral Packing
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: 4G Camcorder Type: Wireless Video Camera
Chipset: Ambarella H22 Sensor: OV4689
Camera Lens: 150 Degree Wide Angle GPS: Live Viewing
WIFI: Support Battery Capacity: 2pcs Of 2800mAh Removable Battery
Battery Lift: 12Hours Warranty: 12 Months
High Light:

Live Viewing Wireless Video Camera

,

OV4689 Sensor Wireless Video Camera

,

GPS Positioning Police Wearable Camera

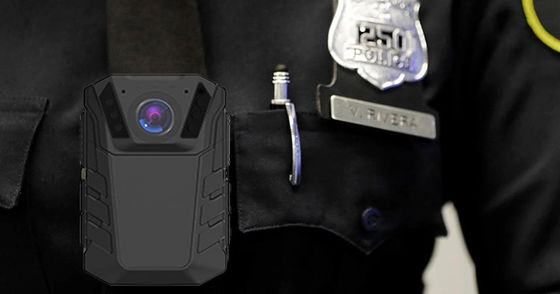

Police Worn Cameras With Live Video Viewing and GPS Positioning



Features

  1. Built in Ambarella H22 chip,Stable operation of the product,With high definition,low illumination industrial grade 1/3 CMOS photosensitive element,the image effect is outstanding, the color is gorgeous and true.
  2. Professional waterproof and dustproof design, IP67 waterproof level can effectively prevent rain and dust into.
  3. Full HD 1440P/1296P and 1080P 30fps camera, H.265 encoding,using Ambarella Smart ultra low bit stream design,reduce storage capacity.
  4. HD 2 inch screen, the diagonal is larger than 52mm,can choose to turn off the screen.
  5. Built-in 4G module,support 4G wireless transmission,can be connected to the platform for centralized monitoring.
  6. Built-in WIFI module,support WIFI wireless transmission (optional).
  7. Built in GPS or Beidou (optional) positioning module, support position real-time tracking and track playback.
  8. Support two-way voice calls,support PTT intercom.
  9. Fast power on, power up to full function video <3 seconds.

Technicial Parameter





Basic configuration Sensor OV4689
Slug Amba H22 chip
display screen 2.0”(5.2cm )
camera lens 150 °very wide angle
levels of protection IP67
Fall grade 2M
LCD display screen Highlight display screen
locate function Built-in GPS positioning module, real-time positioning
TF card 32GB/64GB/128G/256G(With Standard 32GB TF Card)
WIFI function Support for 802.11 b/g/n protocol 2.4GHz
4G network TD-SCDMA / EVDO / WCDMA / LTE-TDD FDD
Image parameter picture pixel Local Version:32M/16M/8M/4M/2M/1M
Shutter control mode Electronic shutter
Focusing distance 50cm- infinity
Exposure mode voluntarily
Photo file format JPEG
Video&Audio parameter Resolution 1440P/1296P/1080P/720P
Frame rate 1440p@30fps/1296p@30fps/1080p@30fps/720p@30fps
Quality High / medium / low setup
Video Compression Standard H.265/H.264 high profile
Video compression format MP4
Audio compression standard AAC
Audio input High quality microphone
Continuous recording time Video 12 hours, 4G Internet 8 hours for 2 battery)
Size Volume (mm) 90*62*34mm
weight about 165g



Product Detail

Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning 0Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning 1



Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning 2

Ambarella H22 Wireless Video Camera OV4689 Sensor GPS Positioning 3
